RCS7450-48 Rugged Switch

Field tested, failsafe and long life performance in extreme conditions. These 15.5” depth units are based on the Ruckus® ICX® 7450 series. These switches are enterprise class, stackable LAN solutions for small and medium size applications. Crystal Group switches provide intelligent, scalable, edge switch technology with enterprise class functionality and mil-spec environmental performance. The optional NIAP certified VPN Encryption Service Module is ideal for transport of sensitive data using standards-based and interoperable implementation requiring encryption from multi-site end-to-end secure data transfer.

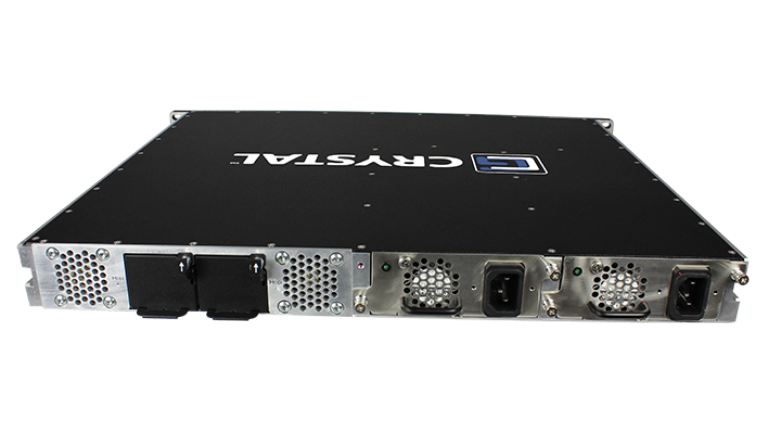

RCS7450-48 Rugged Crystal Switch
  • Optional extended security, data confidentiality, and hardware-based acceleration for IP-sec
  • Layer 2+ and Layer 3 capable
  • Light weight construction from billet strain, hardened aluminum
  • Easy mounting in EIA-310 19” rack, Delrin glides, or fixed mount
  • 48 port switch in 15.5” 1U chassis
  • Modular upgrade capability
  • AC/AC, AC/DC, and DC/DC 1+1 MIL-STD-461 EMC compliance
  • Optional MIL-CIRC connector I/O
  • Tested to MIL-STD-810
    • Operational Temperature, Method 501/502 Procedure I/II: -40°C to +55°C
    • Vibration, Method 514, Procedure I: 4.43 GRMS, 5-2000Hz, 60 min/axis -with solid state drives + vibration kits
    • Shock, Method 516, Procedures I/V: 20g, 11msec–functional shock; 40g, 11msec crash hazard shock
    • Altitude, Method 500: 12,500ft operation, 40,000ft transport
    • Humidity, Method 507: With kit

You can find more information on the Crystal & Ruckus partnership by visiting the Ruggedized Switches page.

Download the features and capabilities of all the Crystal Group rugged switches.

Environmental Standards
MIL-STD-810, Operational Temperature, Method 501/502 Procedure I/II -40°C to +55°C
MIL-STD-810, Vibration, Method 514, Procedure I 4.43 GRMS, 5-2000Hz, 60 min/axis -with solid state drives + vibration kits
MIL-STD-810, Shock, Method 516, Procedures I/V 20g, 11msec–functional shock; 40g, 11msec crash hazard shock
MIL-STD-810, Humidity, Method 507 with kit
MIL-STD-810, Altitude, Method 500 12,500ft operation, 40,000ft transport
Mechanical
Form Factor 1U
Height 1.75" (4.45cm)
Width 17.32" (43.99cm)
Depth 15.5" (39.37cm)
Weight 17.55 lbs (7.96 kgs)
Switch Features
10/100/1000 Mbps RJ-45 Ports Forty-Eight
10/100/1000 Mbps SFP Ports -
Modular Slots Three
1 GbE SFP Ports Four
1/10 GbE SFP/SFP+ Ports Twelve
1/10GBASE-T RJ-45 Ports Twelve
40 GbE QSFP+ Ports Two
IPv4/v6 L3 Routing With License
Stacking Bandwidth 960 Gbps
Stacking Density Twelve
Stacking Distance 10 km
Internal AC Power Supply Rating 2 X 250W
Internal DC Power Supply Rating 2 X 510W
Switching Capacity (Full Duplex) 336 Gbps
Forwarding Capacity (Full Duplex) 250 Mbps
Cooling
Forced air convection via internal high reliability fans.
Mounting
Fixed or Delrin Glides, mounts in standard EIA-310 rack
Power Supply
DC, EMI compliant to MIL-STD-461, CE102, RE102
AC, Auto Switching 90-246VAC, Auto-switching
DC, EMC compliant to MIL-STD-461, CE102, RE102 18-36VDC, 1+1 redundant
Non-rugged COTS 48VDC
Connectors
Available with MIL-CIRC connector, for power
