Field tested, fail-safe and long-life performance in extreme conditions. The rugged RCS7550 switches bring intelligent, scalable, edge switch technology with enterprise-class functionality and MIL-SPEC environmental performance to the most demanding military and industrial applications in air, on land, and at sea. These 16” depth units are based on the Ruckus® ICX® 7550 series—are enterprise-class, stackable LAN solutions for small and medium size applications. The optional NIAP-certified VPN Encryption Service Module is ideal for transport of sensitive data using standards-based and interoperable implementation requiring encryption from multi-site end-to-end secure data transfer.
RCS7550-48 Rugged Crystal Switch
- Optional extended security, data confidentiality, and hardware-based acceleration for IP-sec
- Layer 2+ and Layer 3 capable
- Lightweight construction from billet strain, hardened aluminum

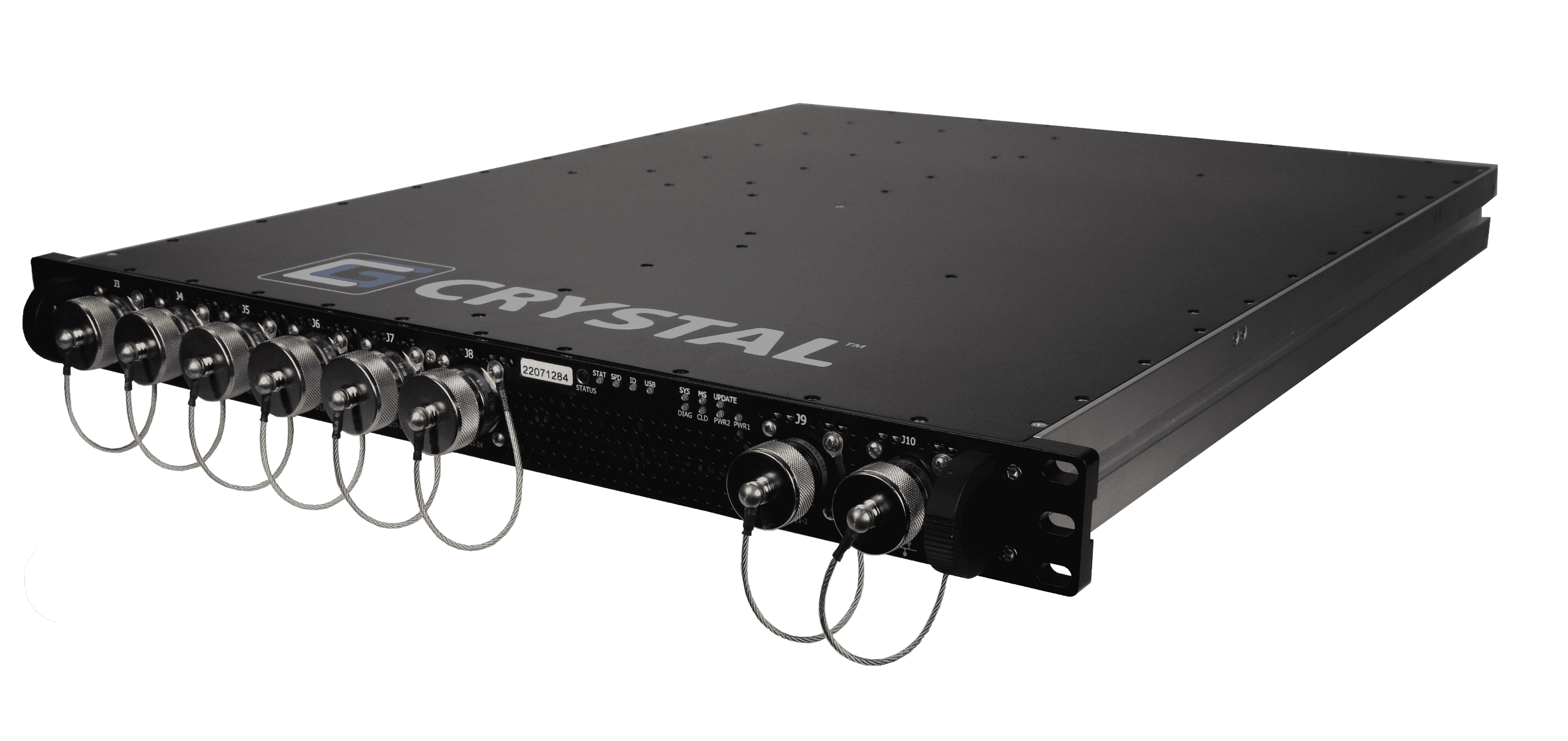

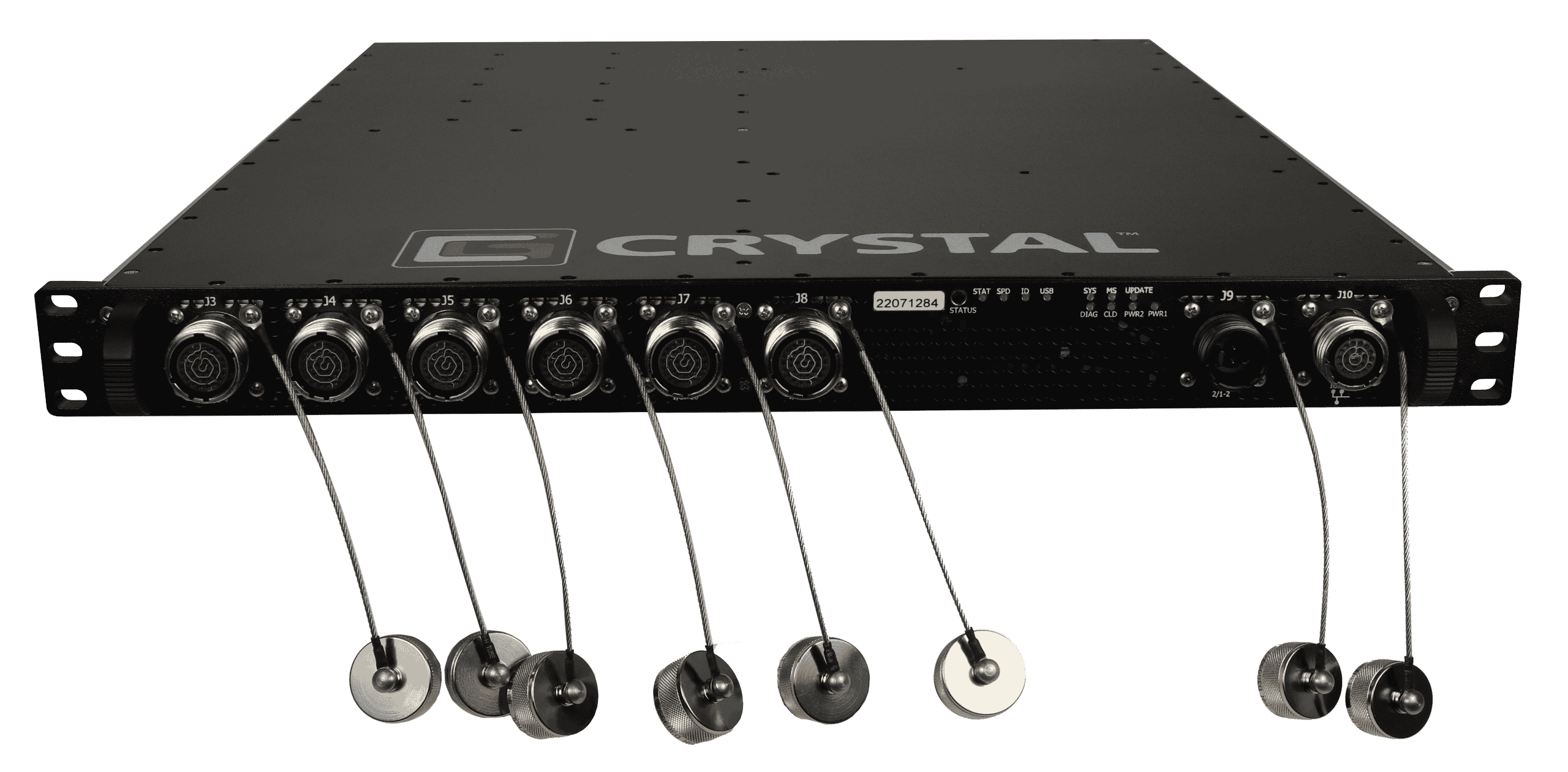

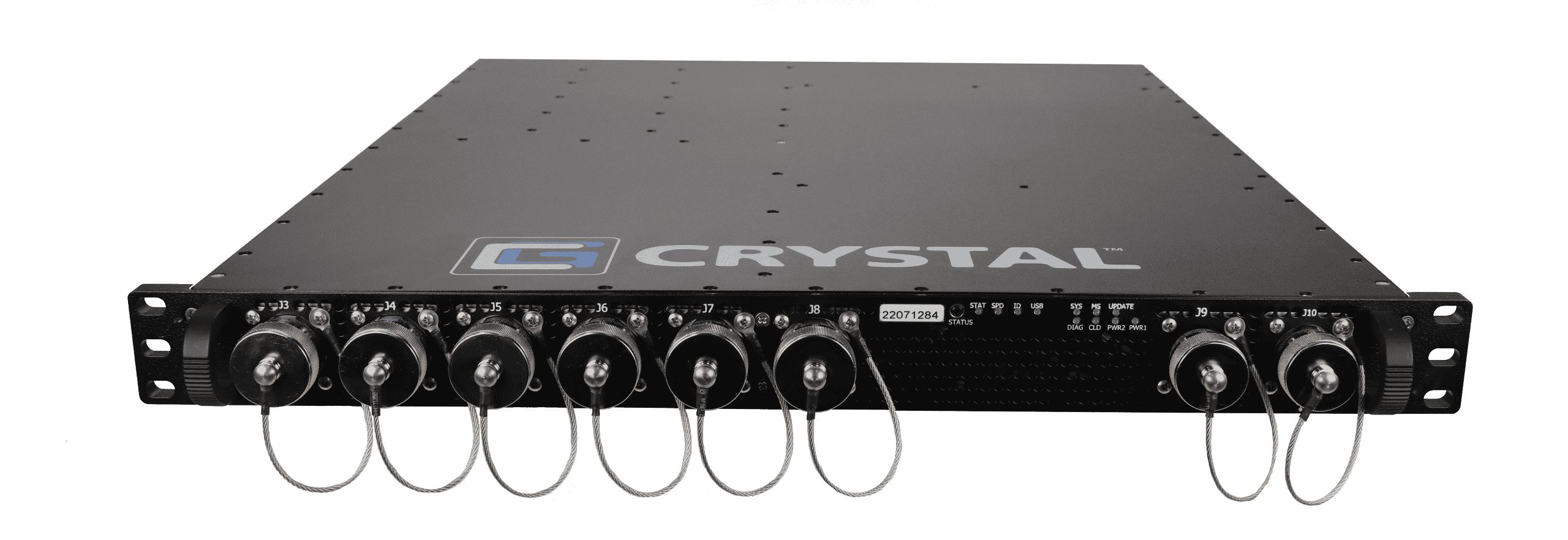

- Optional MIL-CIRC connector I/O
- Optional PoE/PoE+
- Easy mounting in EIA-310 19” rack, Delrin glides, or fixed mount

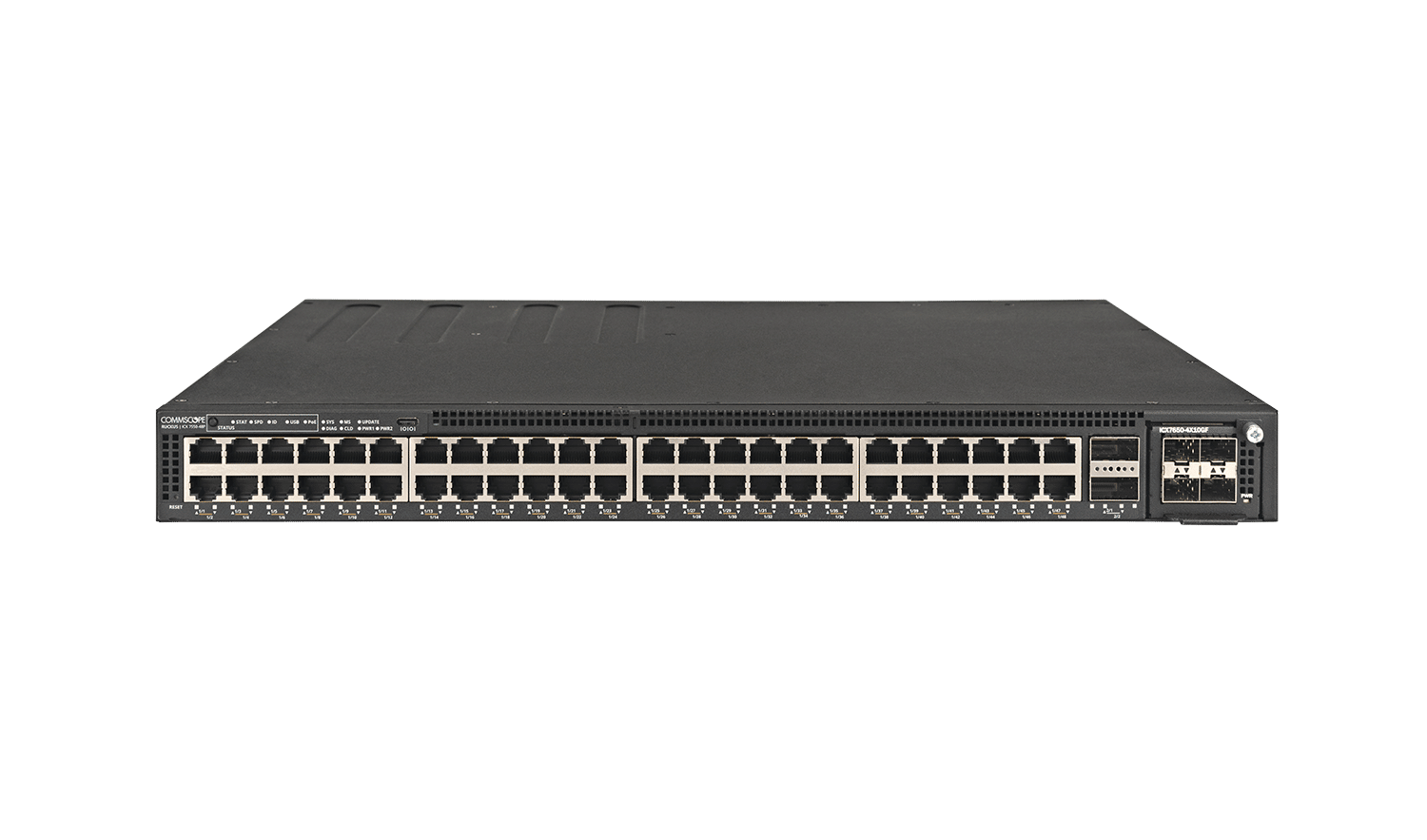

- 24 copper, 24 SFP/SFP+, 48 copper and 48 SFP/SFP+ port
- 16” 1U chassis
- Modular upgrade capability
- AC/AC, AC/DC, and DC/DC 1+1 MIL-STD-461 EMC compliance
Environmental Standards
| MIL-STD-810, Operational Temperature, Method 501/502 Procedure I/II | |
| MIL-STD-810, Vibration, Method 514, Procedure | |
| MIL-STD-810, Shock, Method 516, Procedures I/V | |
| MIL-STD-810, Humidity, Method 507 | |
| MIL-STD-810, Altitude, Method 500 |
Mechanical
| Form factor | 1U |
| Width | 17.32" (43.99 cm) |
| Depth | 16" (40.64 cm) |
| Weight | 13.5-16.3 lbs (6.1-7.4 kg) |
Switch Features
| 10/100/1000 Mbps SFP/SFP+/ RJ-45 Ports | 24 RJ-45 ports and 2 SFP/SFP+ ports |
| 1x Modular Slot | Possible configurations include: 1-port 100GbE QSFP28, 2-port 40GbE QSFP+, or 4-port 1/10GbE SFP |
| IPv4/v6 L3 Routing | With license |
| Stacking Bandwidth | 960 Gbps |
| Stacking Ports | Up to 2x 40G QSFP+ |
| Stacking Density | 12 |
| Stacking Distance | 10 km |
| Switching Capacity (Full Duplex) | 416 Gbps |
| Forwarding Capacity (Full Duplex) | 309 Mbps |
Cooling

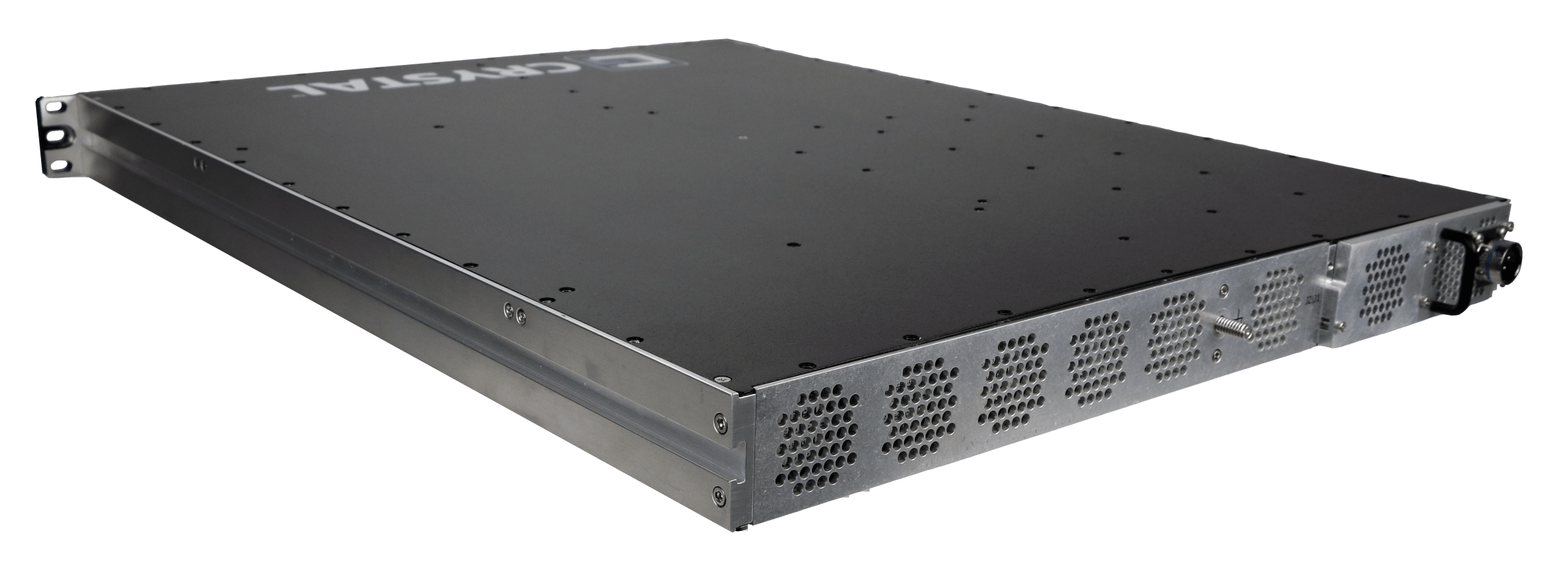

| Forced air convection via internal, high-reliability fans |
Mounting
| Fixed or Delrin Glides, mounts in standard EIA-310 rack |

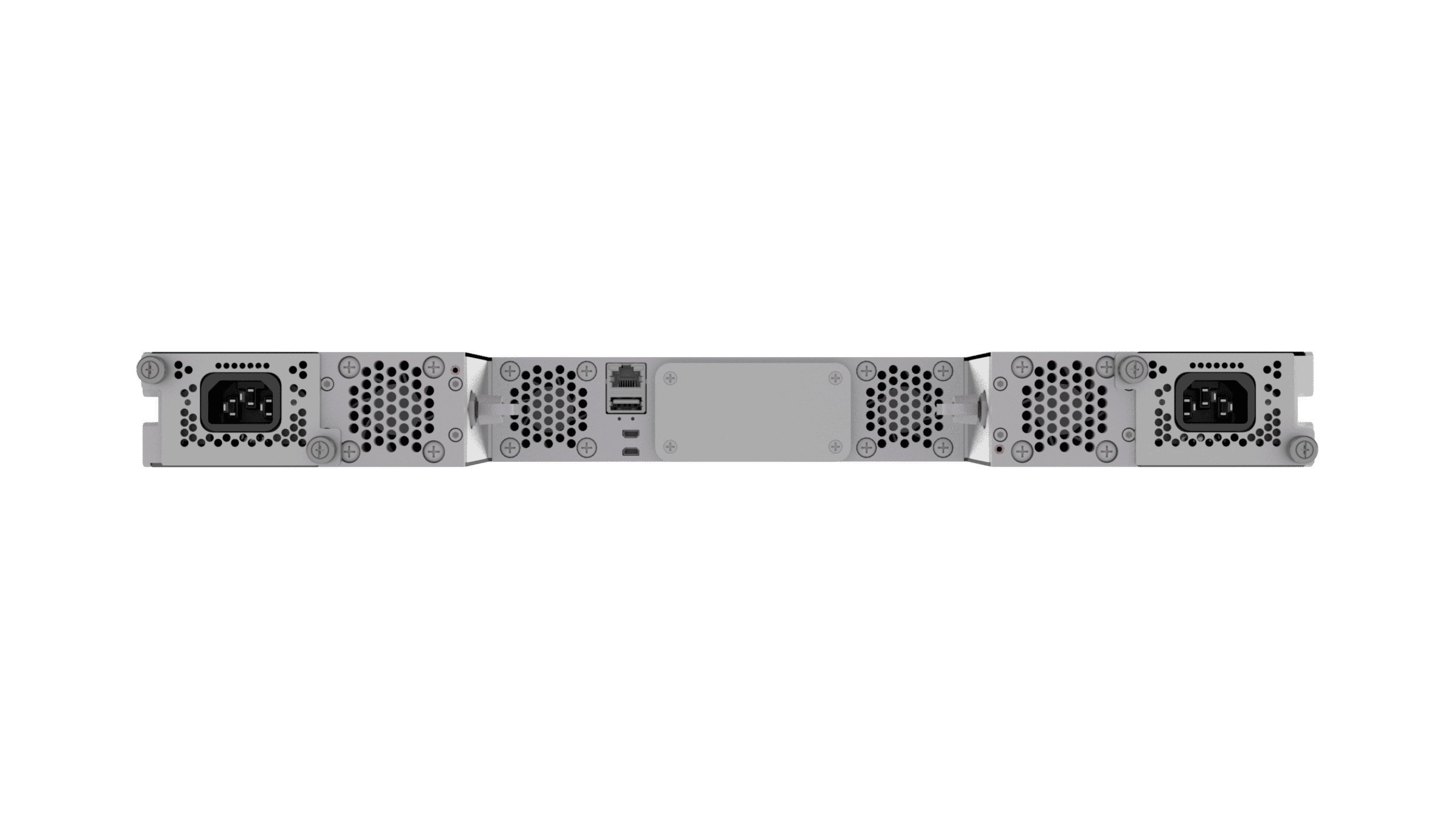

Power Supply
| AC, Auto Switching | 100-240VAC, 50–60 Hz, auto-switching |
| DC, EMI compliant to MIL-STD-461, CE102, RE102 | 18-36VDC, 1+1 redundant |
| Non-rugged COTS | 40-60VDC |
Connectors

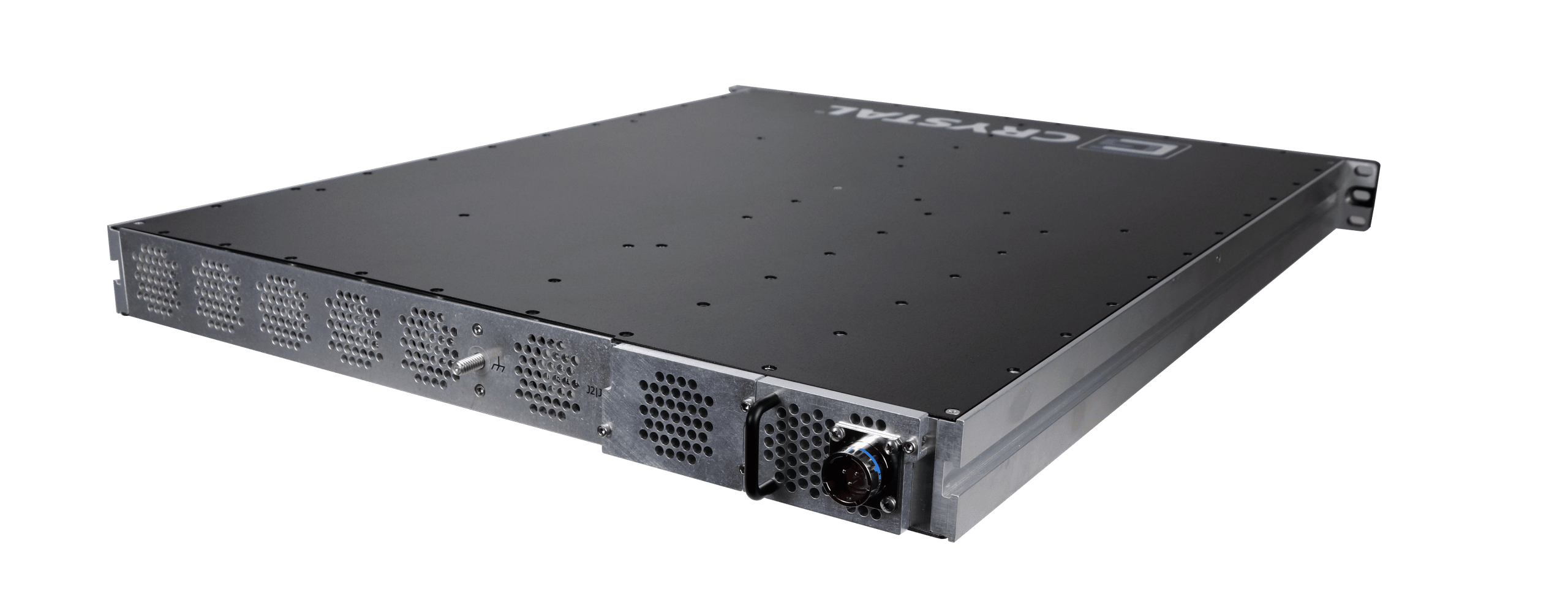

| Available with MIL-CIRC connector for power |
