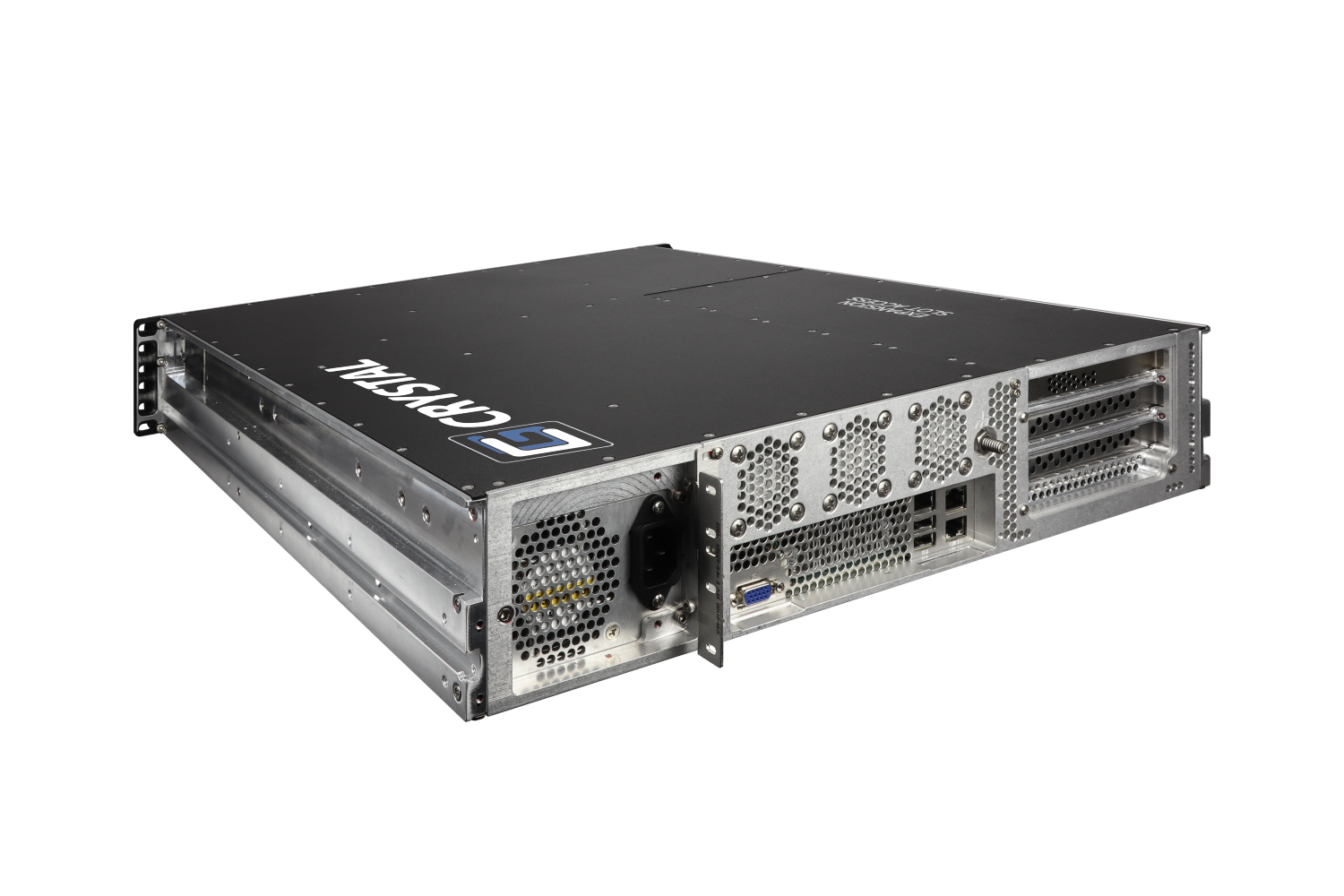

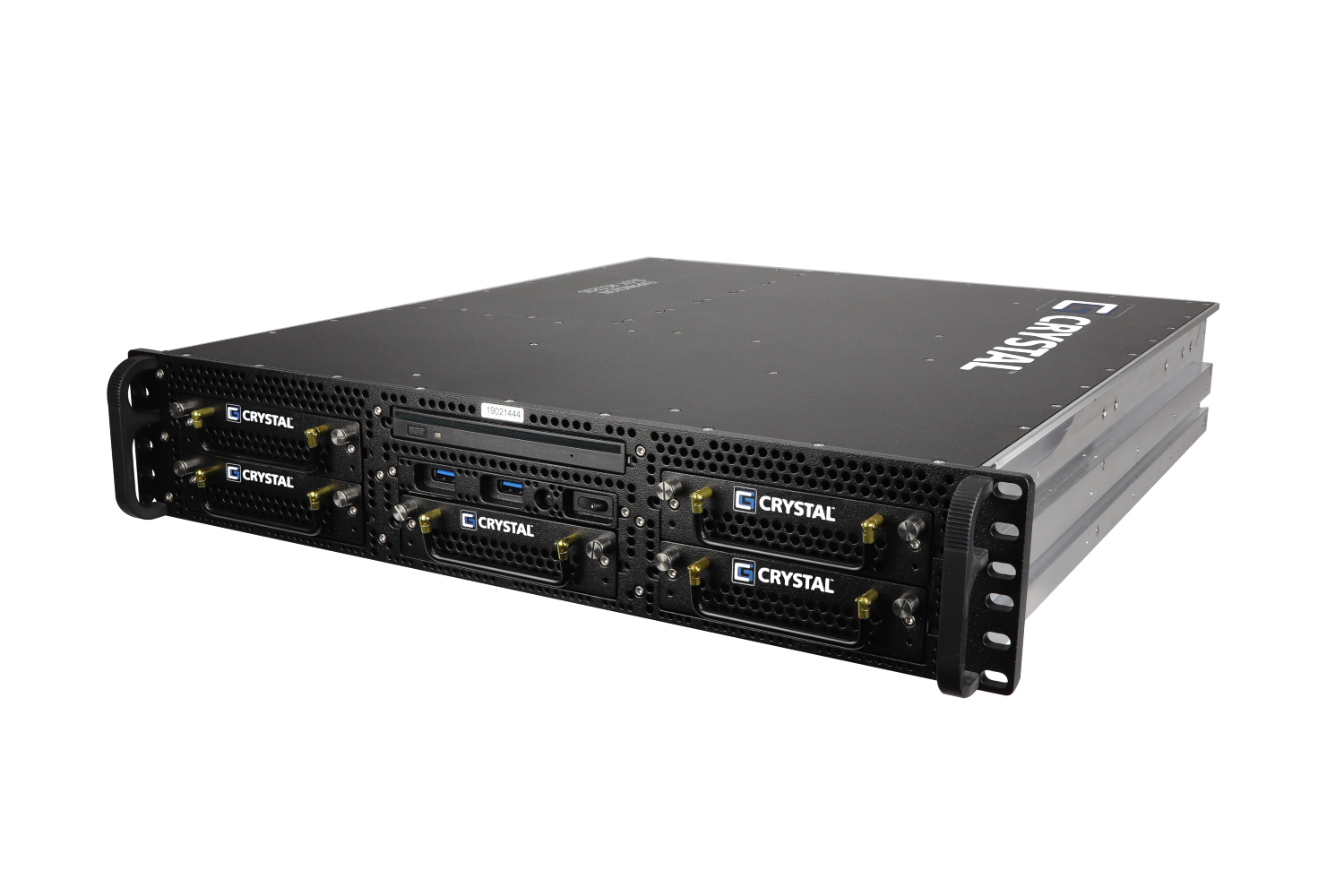

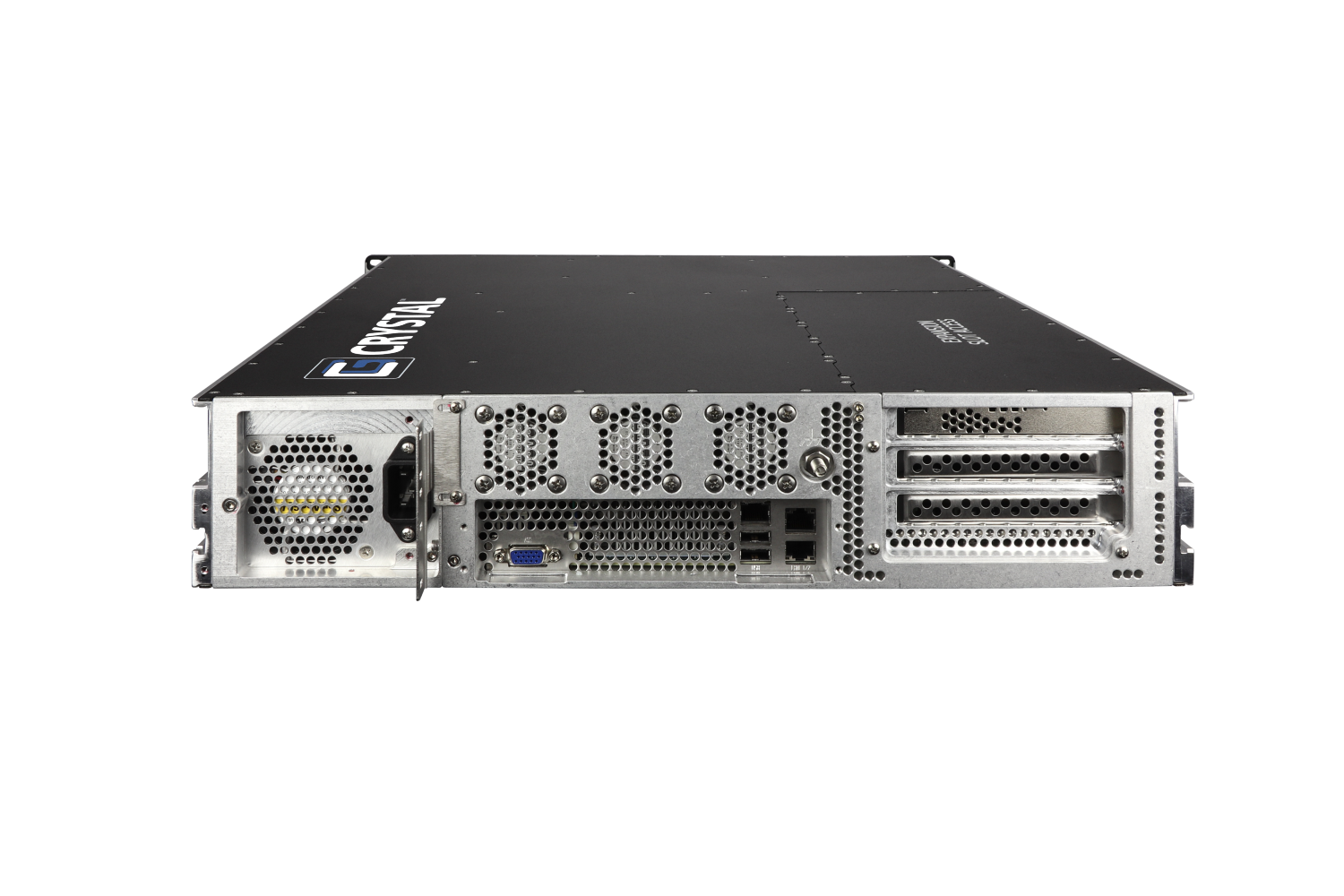

RS235 Rugged 2U Server

Field tested, failsafe and long life performance in extreme conditions. As processing performance continues to improve, Crystal Group is dedicated to minimize the SWaP envelope of the RS235. High-end computing performance in a 2U chassis with a depth under 20” (50.8 cm) fits most any rack space.

Features

RS235 Rugged 2U Server

• Light weight aluminum construction– 30 to35 lbs.
• Easily mounted– Delrin glides, fixed mount, or Jonathan® rails
• Up to 512 GB of memory
• Rugged 2U, rack mounted 20” depth
• Versatility with five (5) removable 3.5” HDD or ten (10) removable 2.5” SSDs
• Expandable with three (3) low profile slots
• Leading edge Intel® Sandy Bridge, Ivy Bridge, Haswell or Broadwell CPU options

Specifications

Environmental Standards
MIL-STD-810, Operational Temperature, Method 501/502 Procedure I/II

-15°C to +55°C, -40°C to +71°C with select processors

MIL-STD-810, Storage, Method 501, Procedure I/II

-55°C to +85°C

MIL-STD-810, Humidity, Method 507, Procedure II

240 hours with humidity kit

MIL-STD-810, Altitude, Method 500

12,500ft operation, 40,000ft transport

MIL-STD-810, Vibration, Method 514, Procedure I

4.63 GRMS, 5-2,000Hz, 60 min/axis with solid state drives and vibration kits

MIL-STD-810, Shock, Method 516, Procedures I/V

20g, 11msec–functional shock; 40g, 11msec crash hazard shock

MIL-S-901, Grade B
MIL-S-901, Grade A

With solid state drives + shock kits

Electromagnetic Compatibility Standards
Some standards may require an internal kit
AC, FCC Compliant
AC, MIL-STD-461, RE102, CE102 compliant
DC, MIL-STD-461, RE102, CE102 compliant
RTCA DO-160 Section 21, Category M
Mechanical
Form Factor
2U
Height
3.5" (8.89cm)
Width
17.5" (44.45cm) EIA-310 Rack Compliant
Depth
20" (50.8cm)
Weight:
30 - 35 lbs ( 13.61 - 15.88 kgs )
CPU
Intel® CPU architecture options from Intel embedded long-life roadmap
Option 1

Sandy Bridge or Ivy Bridge LGA1155, X9SAE-V

Option 2

Haswell or Broadwell LGA2011, X10SRL-F

Dual, Quad, Hexa, Octa, Deca, or Dodeca Core options (dependent on motherboard)

Expansion Slots
One (1) PCIe 2.0 X16 (X8 signals) slot, two (2) PCIe 2.0 X8 slot
External Bays
Option 1

Five (5) removable SATA or SAS 2.5” or 3.5” HDD

Option 2

Ten (10) 2.5” SATA or SAS HDD

Option 3 (can be combined with HDD option)

One (1) CD/DVD/BD (R/W)

Memory
16 GB - 512 GB DDR3 or DDR4 motherboard dependent
Cooling

High Speed, high volume fans (6) CPU temperature controlled

Mounting
Option 1

Mounted on Delrin glides

Option 2

Fixed mount, front and rear

Option 3

Jonathan rails

Power Supply
Option 1 X9DRL-IF & X9SAE-V

460W 120/240VAC W/PFC, 115VAC 400Hz

Option 2 X9DRL-IF & X9SAE-V

425W 18-36VDC

Option 3 X10SRL-F

600W 120/240VAC W/PFC, 115VAC 400Hz

Option 4 X10SRL-F

1200W 120/240VAC W/PFC, 115VAC 400Hz

Option 5 X10SRL-F

585W 18-36VDC

System Board
Option 1

X9SAE-V, Single LGA1155, Xeon® & i3/5/7, ATX, 2LAN1000, VGA, 2XHDMI, AUDIO, 1 PCI, 2 PCI-E X1, 1 PCI-E X4, 1 PCI-E X8, 2 PCI-E X16, SATAX4, SATA3X2

Option 2

X10SRL-F, Single LGA2011 R3 Xeon®, ATX, 2LAN1000, VGA, 2 PCI-E X16, 5 PCI-E X8, IPMI, IPKVM, SATA3X10

Software Compatibility
Accepts Windows 8®, Windows 7®, Windows Server 2008®, Windows Server 2012®, VMware® or Linux®
Export Compliance
ECCN: 5A992 Classification is dependent on configuration and is subject to change. Please contact your Business Development Manager to receive the classification of your product.
