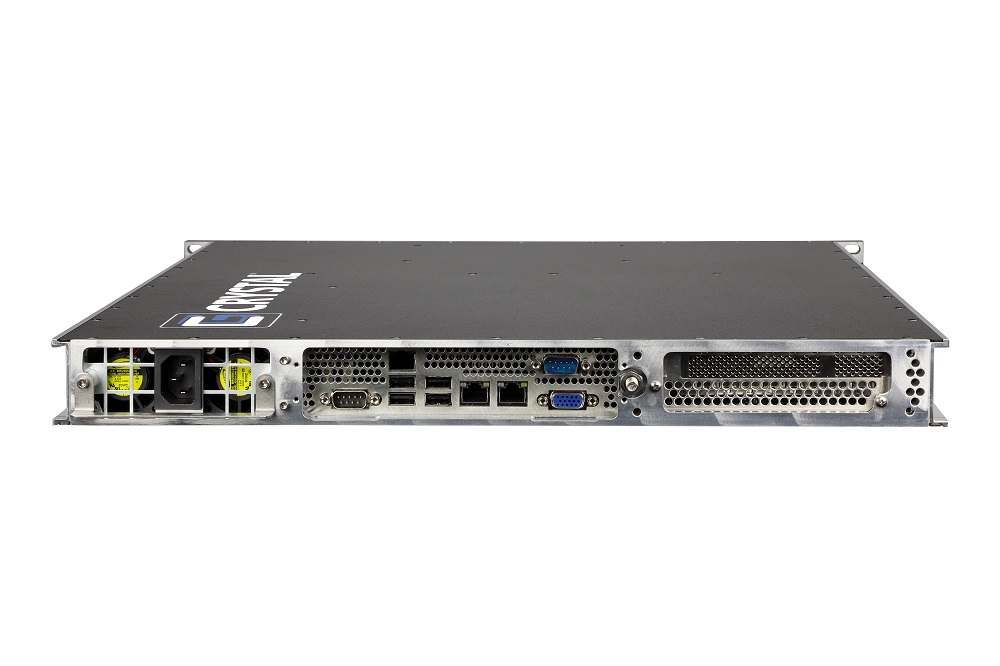

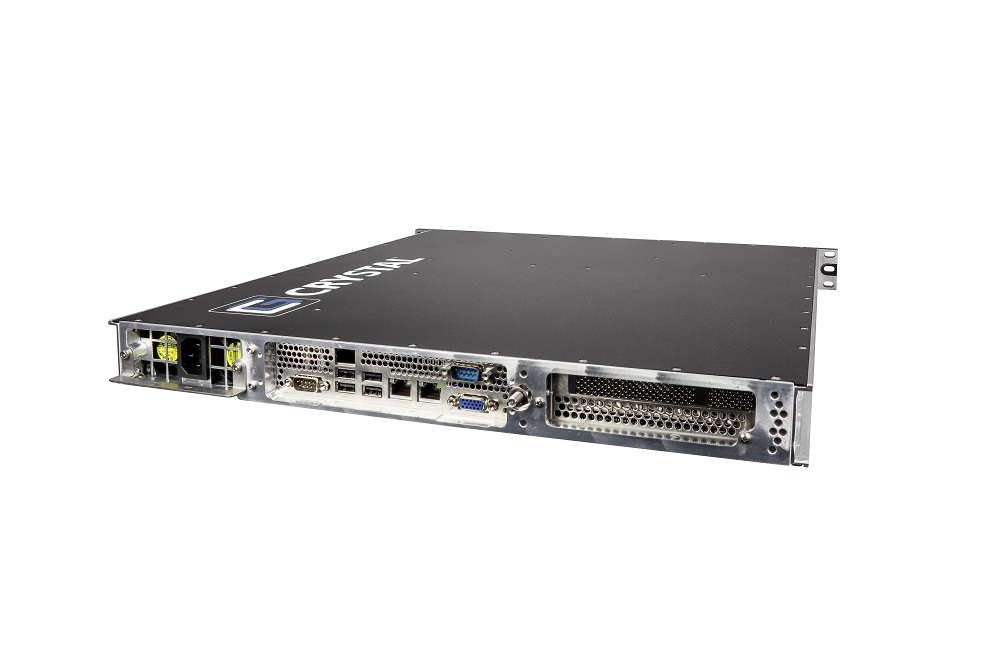

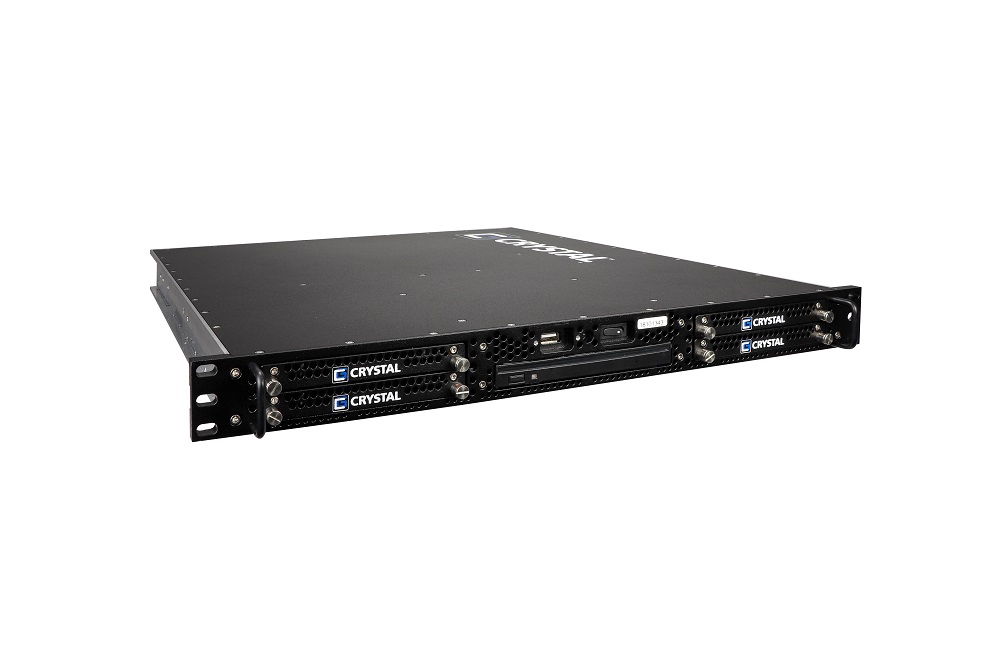

RS112 Rugged 1U Server

Compact and Powerful
As processing performance continues to improve, Crystal Group is dedicated to minimize the SWaP envelope of the RS112. High-end computing performance in a 1U chassis with a depth under 20” (500mm) fits most any rack space. The RS112 continues to provide leading edge performance to the industrial and DoD markets optimizing value for the end users. MEETS MIL-STD 810, 167-1, 461 and MIL-S-901

  • One expansion slot
  • Two or Four drives
  • 20″ depth
  • Intel® Technology Platinum Provider 2016
  • Up to 512 GB of memory

Features

  • Rugged 1U, rack mounted 20″ depth
  • Leading edge Intel® Sandy Bridge, Ivy Bridge, or Haswell CPU options
  • Versatility with two removable 3.5″ HDD or four removable 2.5″ drive bays
  • Expandable with one full height 3/4 length slot
  • Light weight aluminum construction – 15-21 lbs.
  • Easily mounted – Delrin glides, fixed mount or Jonathan® rails
  • Up to 512 GB of memory

Specifications

Environmental Standards
MIL-STD-810, Operational Temperature, Method 501/502 Procedure I/II

-15°C to +50°C, +71°C option, with select CPUs,
-40°C operational with temperature kit and SSD

MIL-STD-810, Storage, Method 501, Procedure I/II

-55°C to +85°C

MIL-STD-810, Humidity, Method 507, Procedure II

240 hours with humidity kit

MIL-STD-810, Altitude, Method 500

12,500ft operation, 40,000ft transport

MIL-STD-810, Vibration, Method 514, Procedure I

4.43GRMS, 5-2000Hz, 60 min/axis— w/ solid state drives + vibe kits

MIL-STD-810, Shock, Method 516, Procedures I/V

20g, 11msec—functional shock; 40g, 11msec crash hazard shock

MIL-S-901, Grade A, Class 2, Type B
MIL-S-901, Grade A, Class 2, Type A

With solid state drives + vibration kits

Electromagnetic Compatibility Standards
Some standards may require an internal kit
AC, FCC compliant
AC, MIL-STD-461, RE102, CE102 compliant
DC, MIL-STD-461, RE102, CE102 compliant
RTCA DO-160 Section 21, Category M
Mechanical
Form Factor
1U
Height
1.75" (4.45cm)
Width
17.5" (44.45cm) [accepts Crystal Slides and Johnathan Rails] EIA-310 Rack Compliant
Depth
20" (50.8cm)
Weight:
15 - 21 lbs ( 6.8 - 9.53 kgs )
CPU
Intel® CPU architecture options from Intel embedded long-life roadmap
Option 1

Sandy Bridge or Ivy Bridge LGA2011, X9DRL-IF

Option 2

Sandy Bridge or Ivy Bridge LGA1155, X9SAE-V

Option 3

Haswell LGA2011, X10SRL-F or X10DRL-I

Dual, Quad, Hexa, Octa, Deca, or Dodeca Core options (dependent on motherboard)

Expansion Slots
One (1) PCIe or PCI slot; combination is configuration dependent
External Bays
Option 1

Two (2) removable SATA or SAS 2.5″ or 3.5″ HDD

Option 2

Four (4) 2.5″ SATA or SAS HDDs

Option 3 Can be combined with HDD option

One (1) CD/DVD/BD (R/W)

Memory
- 512 GB DDR3 or DDR4 (motherboard dependent)
Cooling

High speed, high volume fans (6) CPU temperature controlled

Mounting
Option 1

Mounted on Delrin glides

Option 2

Fixed mount, front and rear

Option 3

Jonathan Rails

Power Supply
Option 1

460W 120/240VAC 50/60Hz w/PFC, 115VAC, 400Hz

Option 2

425W 18-36VDC

System Board
Option 1

X9DRL-IF, Dual LGA2011 Xeon®, ATX, 2LAN1000, VGA, 1 PCI 3.3V, 4 PCI-E X8, 1 PCI-E X1, IPMI, IPKVM, SATARAIDX8, SATA3X2

Option 2

X9SAE-V, Single LGA1155, Xeon®, i3/5/7, ATX, 2LAN1000, VGA, 2XHDMI, AUDIO, 1 PCI, 2 PCI-E X1, 1 PCI-E X4, 1 PCI-E X8, 2 PCI-E X16, SATAX4, SATA3X2

Option 3

X10DRL-I, Dual LGA2011 R3 Xeon®, ATX, 2LAN1000, VGA, 5 PCI-E X8, 1 PCI-E X16, IPMI, IPKVM, SATA3X10

Option 4

X10SRL-F, Single LGA2011 R3 Xeon®, ATX, 2LAN1000, VGA, 2 PCI-E X16, 5 PCI-E X8, IPMI, IPKVM, SATA3X10

Software Compatibility
Accepts Windows 8®, Windows 7®, Windows Server 2008®, Windows Server 2012®, VMware® or Linux®
Export Compliance
ECCN: 5A992 | Classification is dependent on configuration and is subject to change. Please contact your Business Development Manager to receive the classification of your product.
