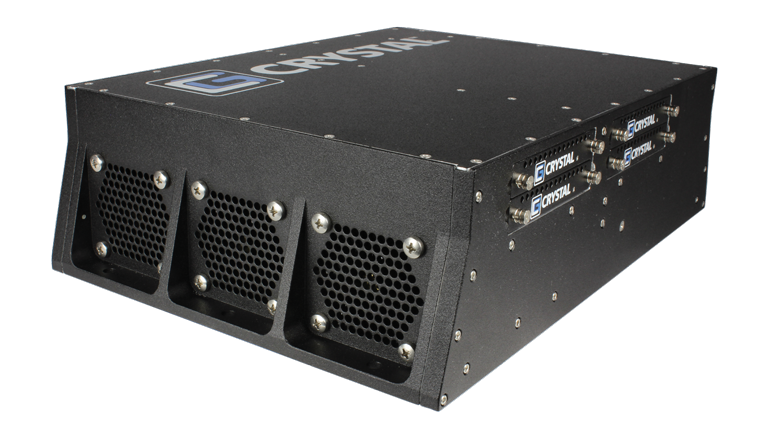

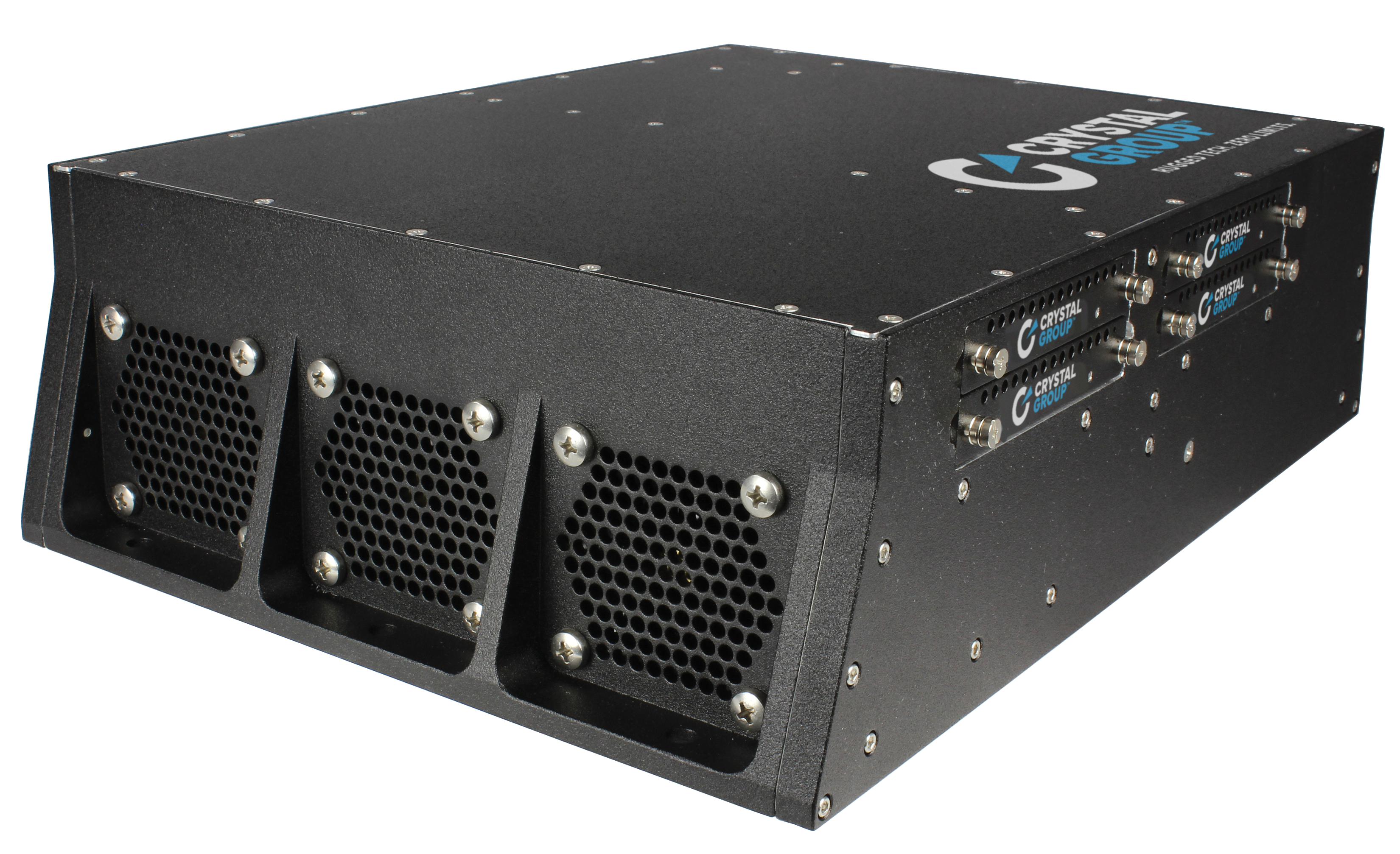

RE1218M Rugged Embedded Computer

Field tested, failsafe and long life performance in extreme conditions. Feature rich Crystal Group Embedded Computer Systems are powerful, compact, and rugged. Completely and easily configurable, the Embedded product line boasts advanced thermal management and a carbon fiber chassis, are field-tested to withstand shock and vibration, extended temperature ranges, harsh elements and harsh environments. Crystal Group Embedded Computer Systems follow the Intel® Roadmap to ensure access to the latest, powerful Intel chipsets and processors.

Features

RE1218M Rugged Embedded Computer

• Light weight aluminum construction – 15lbs. (6.8kg)
• Tray or wall mounted
• Thermostatically controlled fans for quiet operation

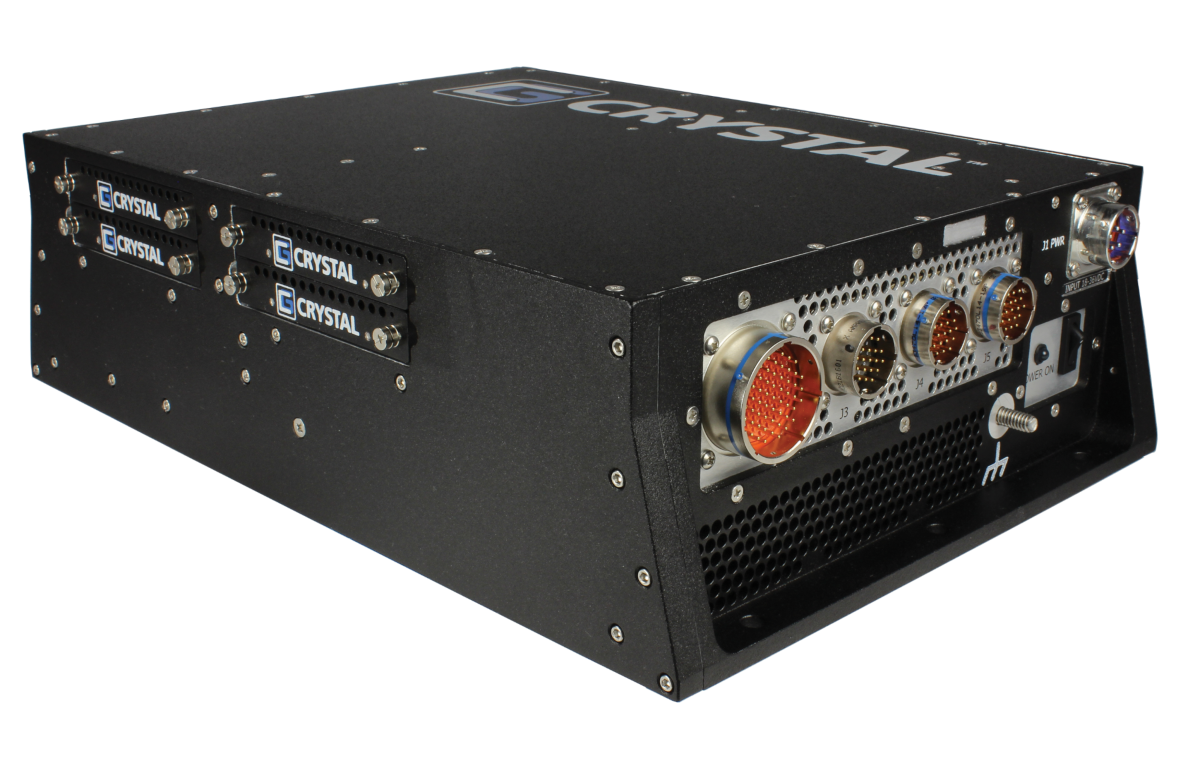

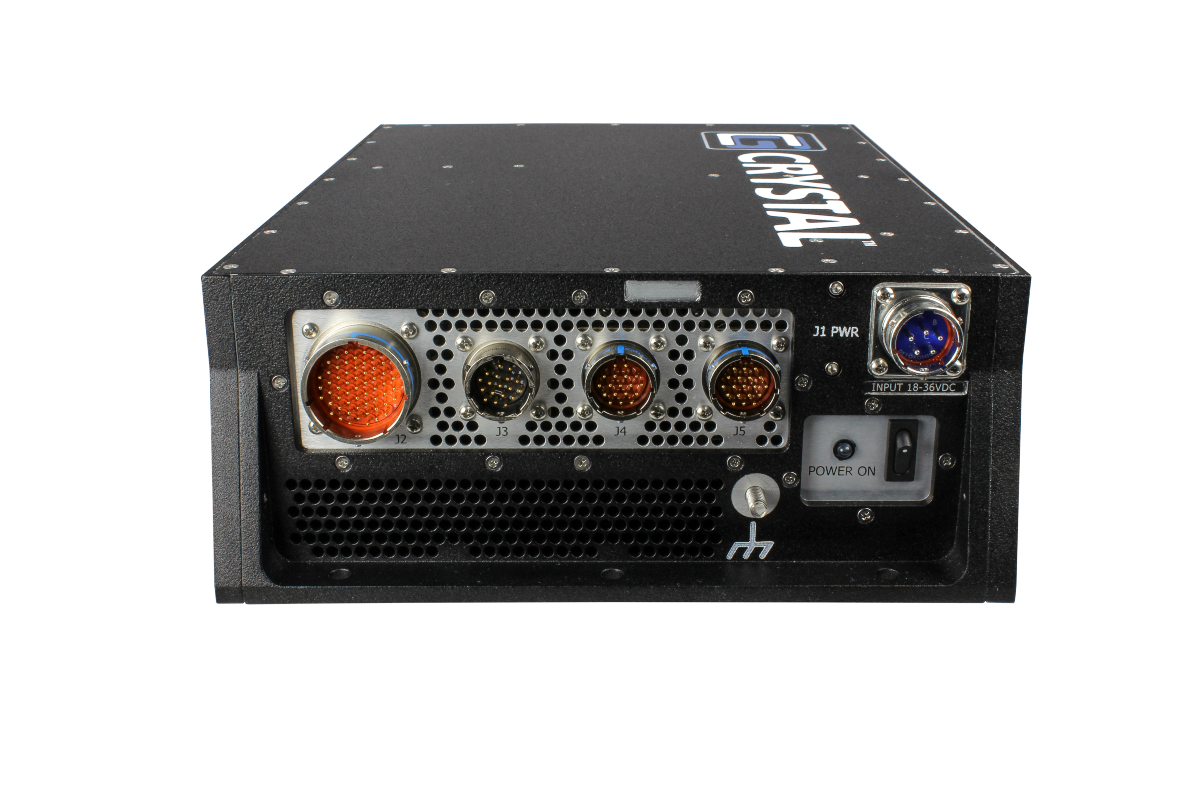

• MIL-C-26482 military circular connectors
• One to eight 2.5” SSD removable drives
• Haswell, Xeon D, or Skylake CPU
• Modular power supply for multiple input options
• One PCIe x16 expansion slot
• Ultra rugged compact for extreme ambient conditions

Specifications

Environmental Standards
MIL-STD-810, Operational Temperature

-40°C to +60°C, with solid state drives

MIL-STD-810, Storage, Method 501, Procedure I/II

-55°C to +85°C

MIL-STD-810, Humidity, Method 507, Procedure II

240 hours with humidity kit

MIL-STD-810, Altitude, Method 500

12,500ft operation, 40,000ft transport

MIL-STD-810, Vibration, Method 514, Procedure I

7.18GRMS x- and y-axis, 4.63GRMS z-axis, 5-2000Hz, 60 min/axis

MIL-STD-810, Shock, Method 516, Procedures I/V

20g, 11msec – functional shock; 40g, 11msec – crash hazard shock

Electromagnetic Compatibility Standards
Some standards may require an internal kit
MIL-STD-461 CE102 (conducted) & RE102 (radiated) emissions, EMC
Emissions

Radiated FCC Part 15. 109, Class A; conducted FCC Part 15. 107, Class A

Testing with solid state drives
Mechanical
Height
4.1" (10.41cm)
Width
10.25" (26.04cm)
Depth
14.4" (36.58cm) excluding connectors
Weight:
14.5 lbs ( 6.58 kgs ) 14.5-16 lbs. *depends on card content (fully loaded)
CPU
Option 1, X11SSVQ**

Quad core i7-6700, 3.4GHz/4.0GHz, HD530

Option 2, X10SDV-6C-TLN4F

XEON D-1528, 2.2GHz/2.6GHz

Option 3, X10SLV-Q

Quad core i7-4470TE, 2.3GHz/3.3GHz, HD4600

Option 4, X9SPV-M4-3QE or X9SPV-LN4F-3QE

Quad core i7-3612QE, 2.1GHz/3.1GHz, HD4000

Option 5, X9SPV-M4 or X9SPV-LN4F-3LE

Dual core i7-3555LE, 2.5GHz/3.2GHz, HD4000

Option 6, X9SPV-F-3610ME

Dual core i5-3610ME, 2.7GHz/3.3GHz, HD4000

Memory
- 128 GB DDR3 or DDR4
Option 1, X11SSVQ** - 32GB DDR4
Option 2, X10SDV-6C-TLN4F - 128GB DDR4
Option 3, X10SLV-Q - 16GB DDR3
Option 4, X9SPV-M4-3QE or X9SPV-LN4F-3QE - 16GB DDR3
Option 5, X9SPV-M4 or X9SPV-LN4F-3LE - 16GB DDR3
Option 6, X9SPV-F-3610ME - 16GB DDR3
Cooling

High speed, high volume thermostatically controlled fans, air over components cooling design

Mounting
Fixed mount or tray mount
Power Supply
Option 1

9-18VDC (144W) with MIL-STD-461 filtering, MIL-STD-704

Option 2

18-36VDC (200W) with MIL-STD-461 filtering, MIL-STD-704

Option 3

36-75VDC (200W) with MIL-STD-461 filtering, MIL-STD-704

Option 4

120/240VAC (200W) 50/60Hz/115VAC 400Hz with MIL-STD-461 filtering, MIL-STD-704

System Board
Option 1, X11SSVQ**

LGA 1151, DP, HDMI, DVI-I, 2x 1G LAN, 1x PCI-E 3.0 x16

Option 2, X10SDV-6C-TLN4F

FCBGA1667, VGA, IPMI, 2x 1G + 2x 10G LAN, 1x PCI-E 3.0 x16

Option 3, X10SLV-Q

LGA 1150, DP, HDMI, DVI-I, 2x 1G LAN, 1x PCI-E 3.0 x16

Option 4, X9SPV-M4-3QE or X9SPV-LN4F-3QE

FCBGA 1023, (DMI, DP, DVI-I) or VGA, 4x 1G LAN, PCI-E 3.0 x16

Option 5, X9SPV-M4 or X9SPV-LN4F-3LE

FCBGA 1023, (HDMI, DP, DVI-I) or VGA, 4x 1G LAN, PCI-E 3.0 x16

Option 6, X9SPV-F-3610ME

FCBGA 1023, (HDMI, DP, DVI-I) or VGA, 4x 1G LAN, PCI-E 3.0 x16

Software Compatibility
Accepts Windows 10®, Windows Server 2008®, Windows Server 2012®, VMware®, Redhat 6.5® or Redhat 6.6®
Export Compliance
ECCN: 5A992.c | Classification is dependent on configuration and is subject to change. Please contact your Business Development Manager to receive the classification for your product.

Reports, Guides & Drawings

RE1218M Embedded Computer - Outline Installation Drawing
