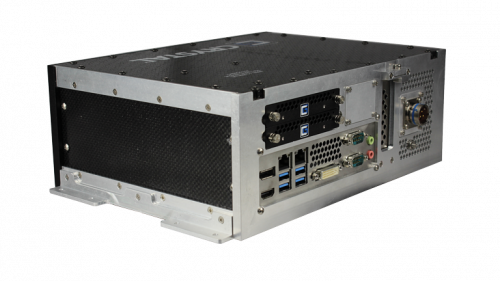

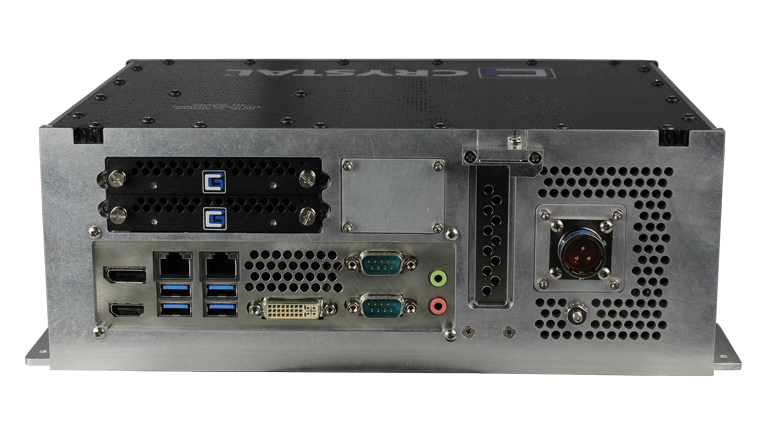

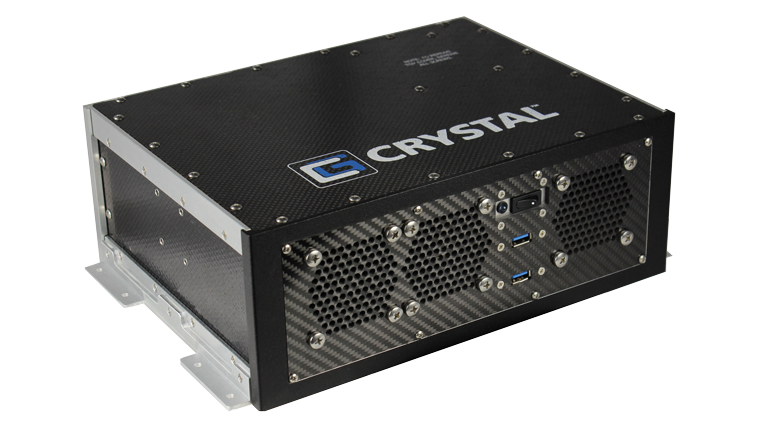

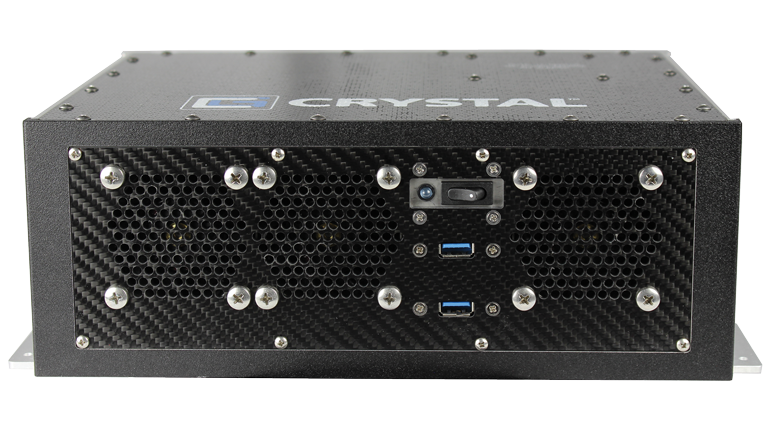

RE1312 Rugged Embedded Computer

Field tested, failsafe and long life performance in extreme conditions. Feature rich Crystal Group Embedded Computer Systems are powerful, compact, and rugged. Completely and easily configurable, the Embedded product line boasts advanced thermal management and a carbon fiber chassis, are field-tested to withstand shock and vibration, extended temperature ranges, harsh elements and harsh environments. Crystal Group Embedded Computer Systems follow the Intel® Roadmap to ensure access to the latest, powerful Intel chipsets and processors.

Features

RE1312 Rugged Embedded Computer

• Light weight composite construction – 4.5”H x 12” W x 9”D footprint (7-8 lbs)
• Compact composite construction provides low SWaP
• 7th Generation i7®/Broadwell-DE, Xeon®-D CPU technology
• Dual and Quad Core i7 CPU options/ up to 16 cores Xeon-D
• 18-36 VDC power
• Up to 32GB unbuffered, non ECC DDR4 1.2V SO-DIMM or 128GB ECC DDR4 with Xeon-D offering
• Two 15mm SSD or three 7/9mm SSD storage options, removable drives
• MIL-STD-461 CE102, RE102 compliant
• Bulk head or tray mounted options

Please contact us to receive the reports, guides and drawings that best fit your requirements.

Specifications

Environmental Standards
MIL-STD-810, Operational Temperature

-40°C to +60°C

MIL-STD-810, Storage, Method 501, Procedure I/II

-40°C to +85°C

MIL-STD-810, Humidity, Method 507, Procedure II

240 hours with humidity kit

MIL-STD-810, Altitude, Method 500

12,500ft operation, 40,000ft transport

MIL-STD-810, Vibration, Method 514, Procedure I

5.5GRMS, 5-2,000Hz, 60 min/axis, 3 axes with vibration kit

Electromagnetic Compatibility Standards
Some standards may require an internal kit
MIL-STD-461, CE102, RE102
Mechanical
Height
4.5" (11.43cm)
Width
12" (30.48cm)
Depth
9" (22.86cm) excluding connectors
Weight:
7.52 lbs ( 3.41 kgs ) Power: 55-80W with select configurations, CPU dependent
Expansion Slots
One (1) PCIe 3.0x16 low profile expansion bay
Internal Expansion Slots
Up to three SATA 2.5” SSD (externally removable)
Cooling

Three (3) high reliability 60mm fans

Mounting
Tray or bulkhead mounted using ears supplied
Power Supply
18-36 VDC
Other options under development
System Board
Option 1

X11SSV-Q, LGA 1151, Mini-ITX, H4 i7/i5/i3, DP, HDMI, DVI-I, 2X 1G LAN, 5X SATA3, 2X Serial, HD audio, 1X PCI-E 3.0 X 16, 6x USB 3.0

Option 2

X10SDV-6C-TLN4F, FCBGA 1667, Mini-ITX, Xeon-D 1528, 6 Cores, 2x 1GB LAN, 2x 10G LAN, 1x PCI-E 3.0 x 16

Software Compatibility
Accepts Windows 10®, VMware®, RHEL 6.6®, RHEL 6.7®, RHEL 7®, RHEL 7.1®, SUSE SLES 11®, Centos 7.1®, Windows Server 2016® or Ubuntu 16®
Export Compliance
ECCN: 5A992 | Classification is dependent on configuration and is subject to change. Please contact your Program Manager to receive the classification of your product.
