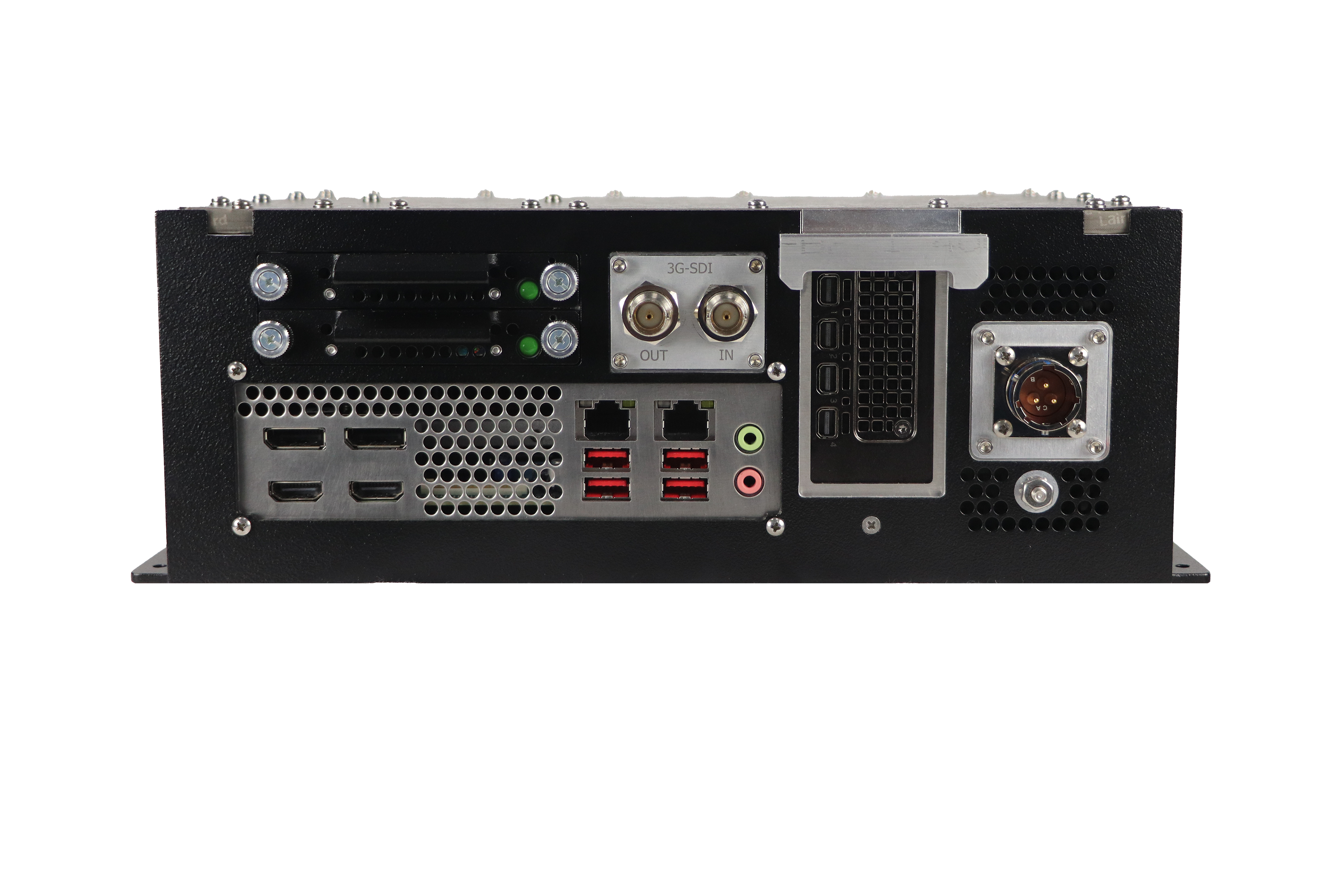

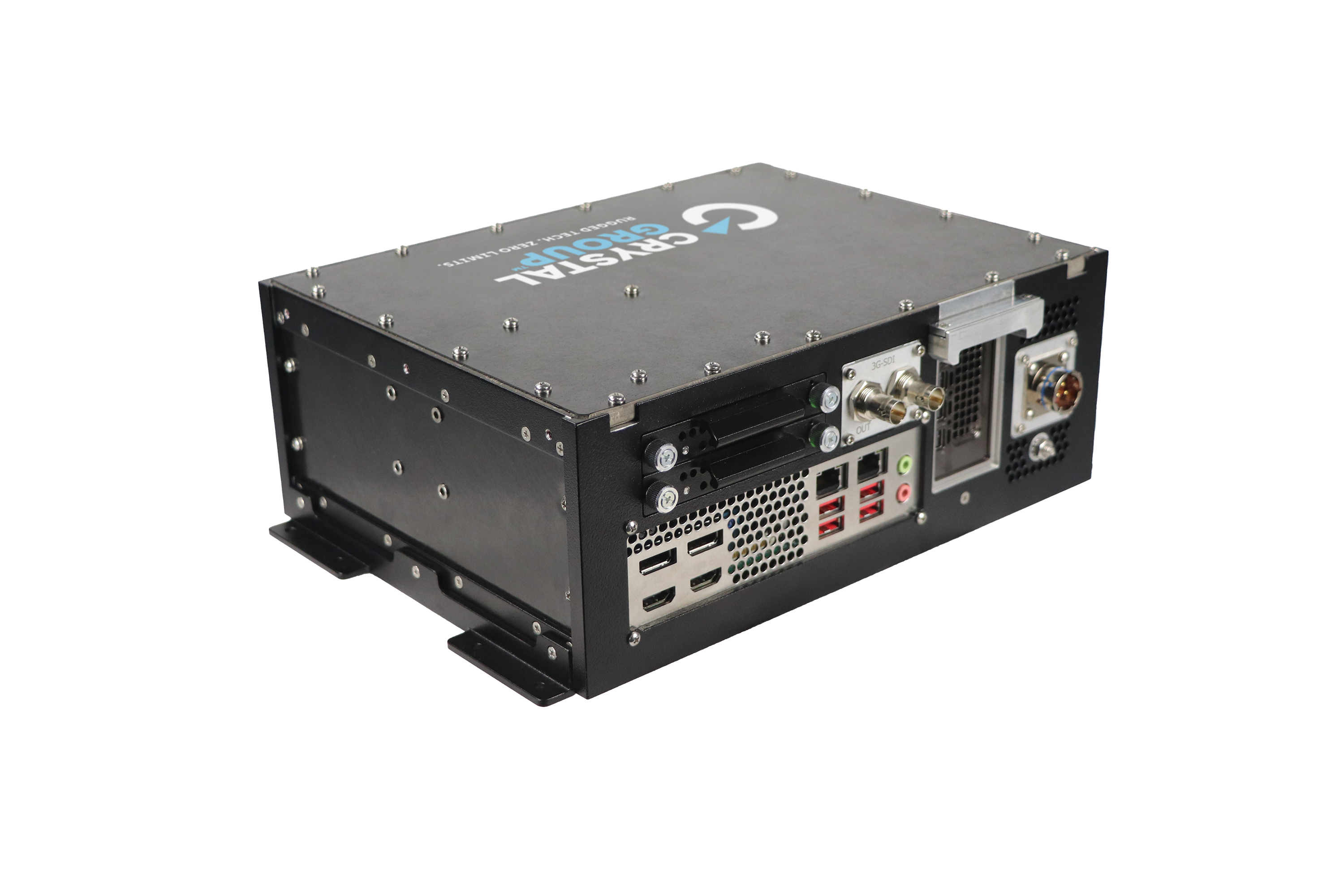

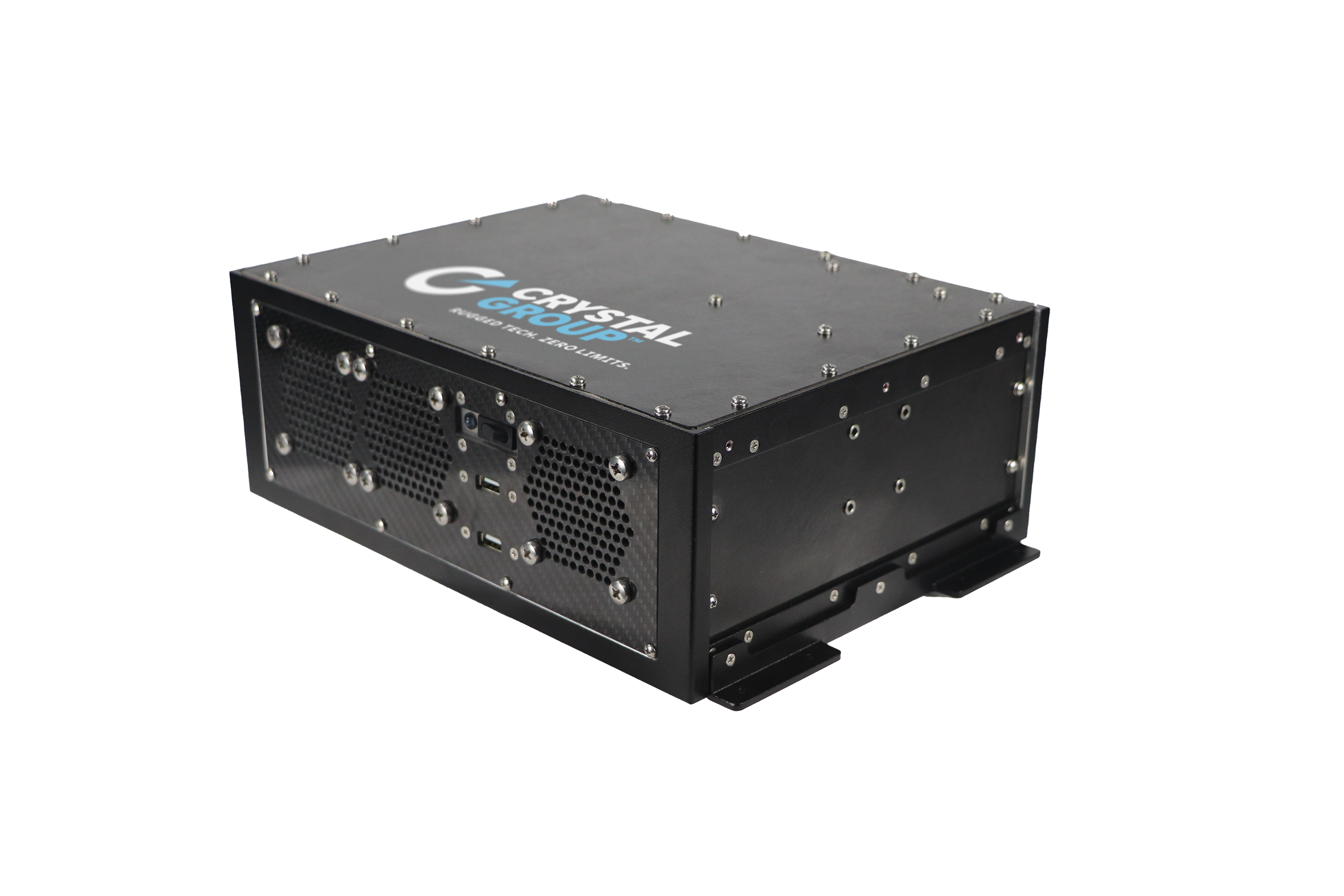

RE1322 Rugged Embedded Computer

More GPU power in a small package. Easily configurable to meet specific customer needs, the embedded product line boasts advanced thermal management and a carbon fiber chassis field-tested to withstand shock and vibration, extended temperature ranges, and harsh environments. The RE1322 has two expansion slots in the chassis, allowing for low-profile, double width cards like RTX A2000, and RTX 4000 SFF ADA.

RE1322 Rugged Embedded Computer
  • Ultra lightweight, small form factor
  • Intel® Core i7 CPU options
  • DC power supply
  • Up to 64GB unbuffered, non-ECC DDR4 1.2V SO-DIMM
  • Two 15mm SSD or three 7mm SSD storage options, removable drives
  • One PCIe slot for single or dual width cards
Height 4.5" (11.43cm)
Width 12" (30.48cm)
Depth 9" (22.86cm); excluding connectors
Weight 6.3-8.5 lbs. (2.9-3.86 kg)
CPU Architecture
12th/13th Generation Intel® Core i7 CPU options
Expansion Slots
One PCIe slot for single or dual width cards
Three high reliability 60mm fans
Internal Expansion Slots
Up to three SATA 2.5” SSD (externally removable)
Up to 64GB unbuffered, non ECC DDR4 1.2V SO-DIMM or 128GB ECC DDR4 with Xeon D
Power Supply
18-36 VDC
Tray or bulkhead mounted using ears supplied
Software Capability
Windows 11®, Windows Server®, VMWare®, Linux
Environmental Standards
MIL-STD-810, Operational Temperature -40°C to +60°C
MIL-STD-810, Storage, Method 501, Procedure I/II -40°C to +85°C
MIL-STD-810, Humidity, Method 507, Procedure II 240 hours with humidity kit
MIL-STD-810, Altitude, Method 500 12,500ft operation, 40,000ft transport
MIL-STD-810, Vibration, Method 514, Procedure I 5.5GRMS, 5-2,000Hz, 60 min/axis, 3 axes with vibration kit
MIL-S-901 Grade A With solid state drives + shock kits
Electromagnetic Compatibility Standards
Some standards may require an internal kit
MIL-STD-461, CE102, RE102
