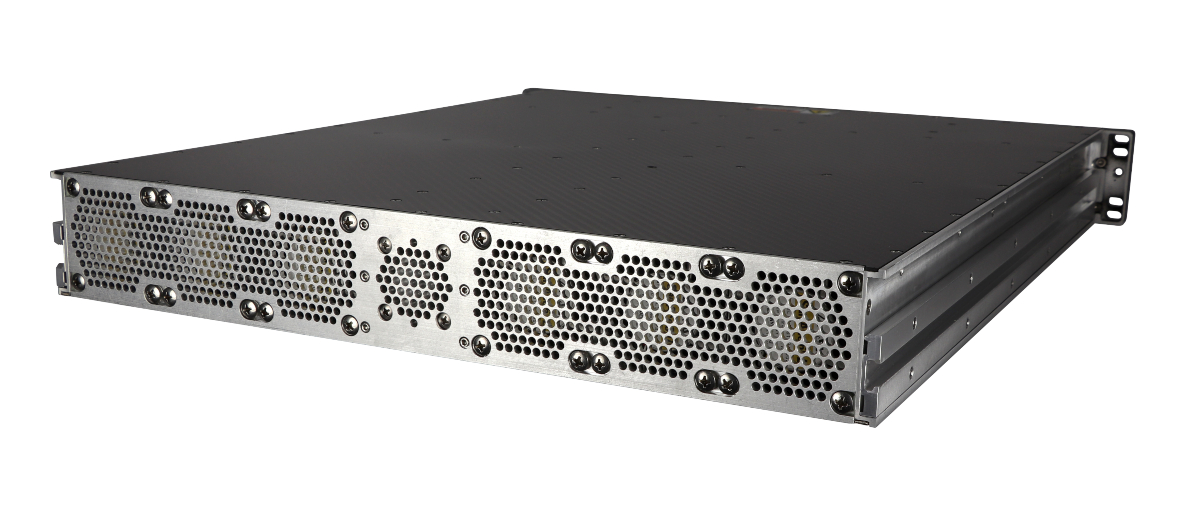

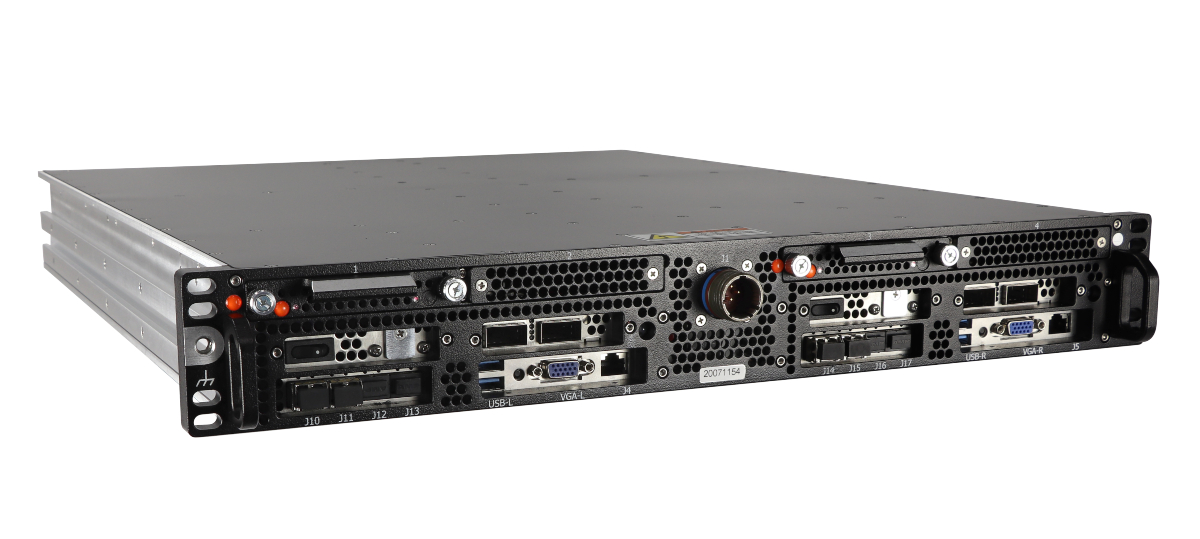

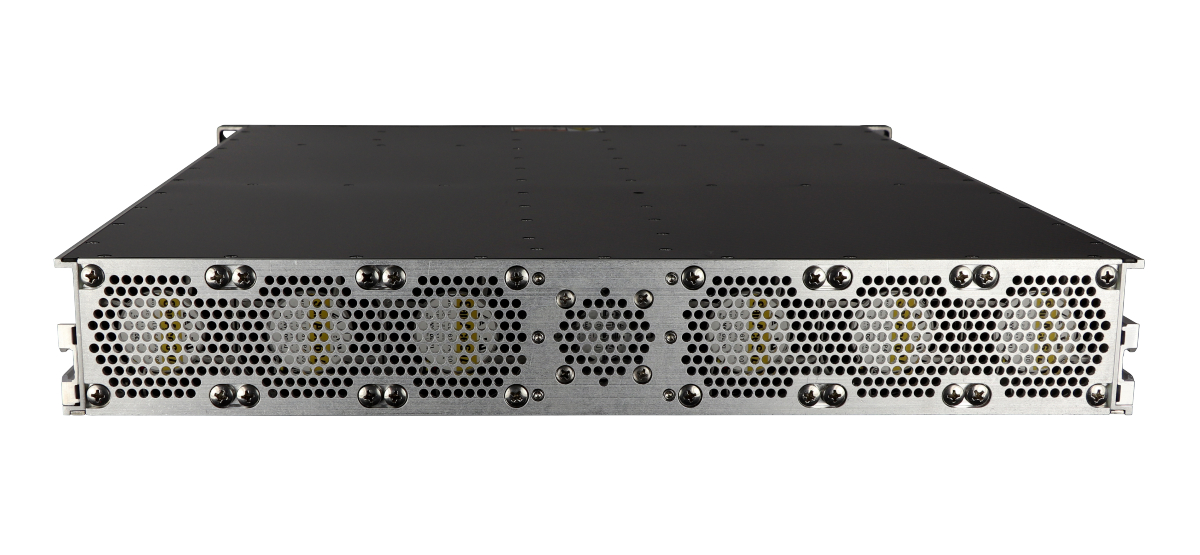

RS1.532L21X2F Rugged Twin Server

Increase readiness. The RS1.532L21X2F 1.5U rugged server delivers proven reliability and computing performance in extreme and unpredictable environments — critical for successful  execution of combat, sonar and electronic warfare applications across all domains, including cyber. The smaller, integrated footprint of the unit fits easily into standard rack slots. With system availability, superior cooling and shock/vibe resistance, this 1.5U rugged server stands ready to perform.

Features

  • Rugged 1.5U, 21″ deep rack mounted Dual Node, front I/O server
  • Lightweight aluminum construction – 28-32 lbs.
  • Shared 1500W power supply, operates off 110/220V 50/60Hz AC or 180-350VDC
  • Dense SWAP capability with 2 dual socket motherboards per chassis
  • 2nd Gen Intel Xeon Scalable processors up to 125W each
  • Four removable U.2 NVME SSDs
  • Four low profile HHHL PCIe x16 slots, plus 2x SIOM modules with up to 8 ports of network connectivity per chassis
  • 4X USB 3.0, 2x VGA, 2X Gigabit IPMI

Specifications

Environmental Standards
Designed to meet standard
MIL-STD-810, Operational Temperature

-40°C to +55°C (+55C temperature assumes use of lower power CPUs, expansion cards, and SSDs)

MIL-STD-810, Storage, Method 501, Procedure I/II

-40°C to +85°C

MIL-STD-810, Humidity, Method 507, Procedure II

240 hours with conformal coating

MIL-STD-810, Altitude, Method 500

12,500ft operation, 40,000ft transport

MIL-STD-810, Shock, Method 516, Procedures I/V

6g, 11msec–functional shock; 20g, 11msec crash hazard shock

MIL-STD-810, Vibration, Method 514, Procedure I

2Grms, 5-2,000Hz, 60 min/axis, 3 axis

MIL-STD-167-1A, Vibration, Type 1
Electromagnetic Compatibility Standards
Designed to meet standard
MIL-STD-461, RE102, CE102 compliant
Mechanical
Form Factor
1.5U
Height
2.63" (6.68cm)
Width
17.5" (44.45cm)
Depth
21" (53.34cm)
Weight:
28 - 32 lbs ( 12.7 - 14.51 kgs )
CPU
Intel® CPU architecture options from Intel embedded long-life roadmap; Up to 22 cores per socket (2 sockets per node, 4 total) up to 125W each, 2nd Gen Intel Xeon Scalable Processors
Expansion Slots
2x PCIe x16 HHHL low profile cards per node (4 total), 1x Supermicro SIOM card per node (2 total)
Memory
16 GB DDR4 ECC RDIMM/LRDIMM per node (2 nodes)
Cooling

Seven high speed, high volume fans

Power Supply
Single 1500W power supply shared by both nodes. Operates on 90-264V AC (50/60Hz) or 180-350VDC input
System Board
2x X11DPT-PS dual socket 2nd Gen Intel Xeon Scalable processors
Software Compatibility
Accepts Windows 10®, VMware®, Linux® or Windows Server®
Export Compliance
ECCN: 5A992A | Classification is dependent on configuration and is subject to change. Please contact your program anager to receive the classification for your product.
Storage

2x U.2 NVMe SSD per node (4 total)
