Compact and rugged. The RS1004L21X2 packs twice the computing performance in a 1U rugged server. This compact, powerful solution is critical for successful execution of combat, sonar, ISR, and electronic warfare applications in extreme and unpredictable environments across all domains, including cyber. The integrated design consolidates system availability, superior cooling, and shock/vibe resistance into a smaller footprint that fits easily into standard rack slots.

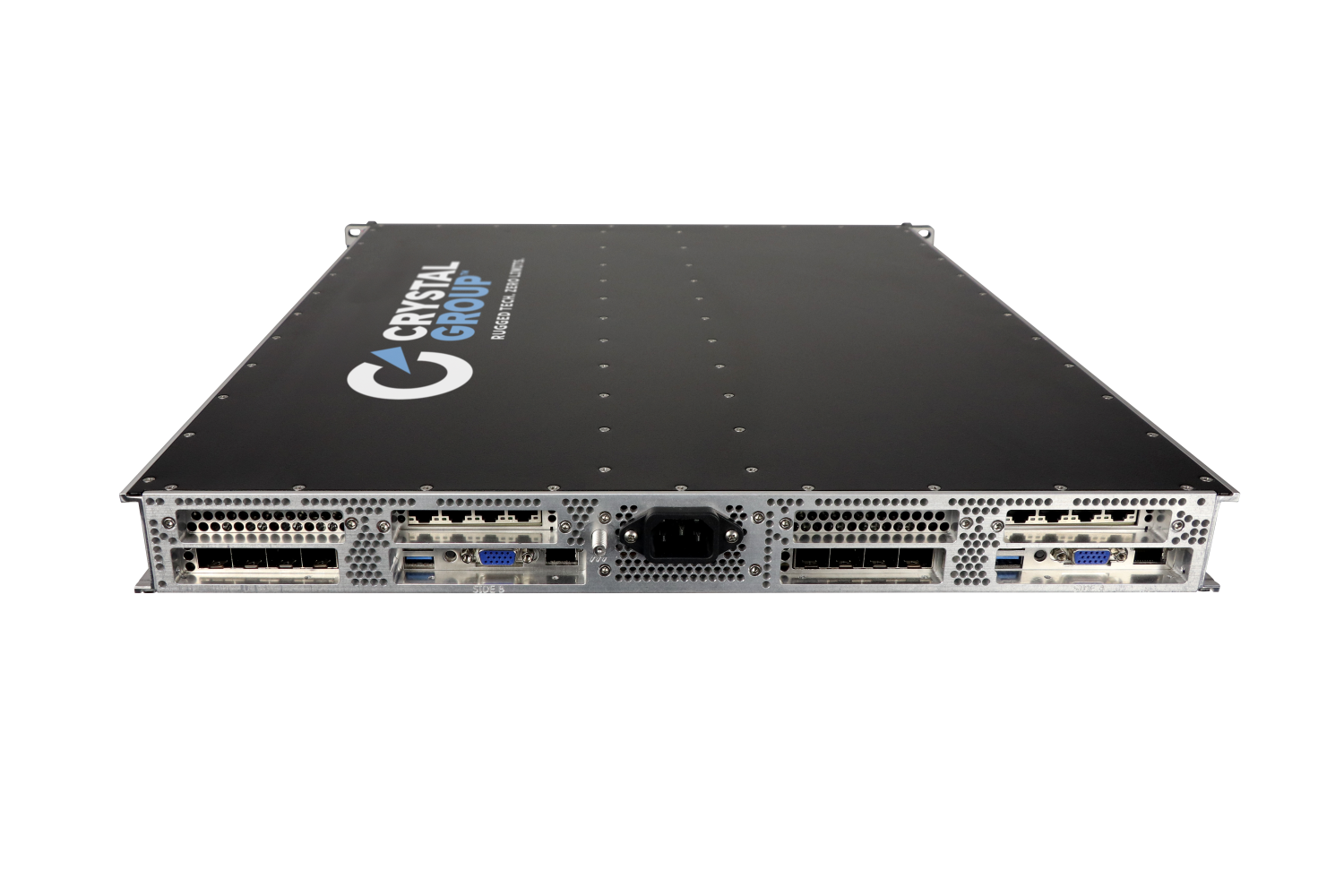

RS1004L21X2 Rugged 1U Twin Server

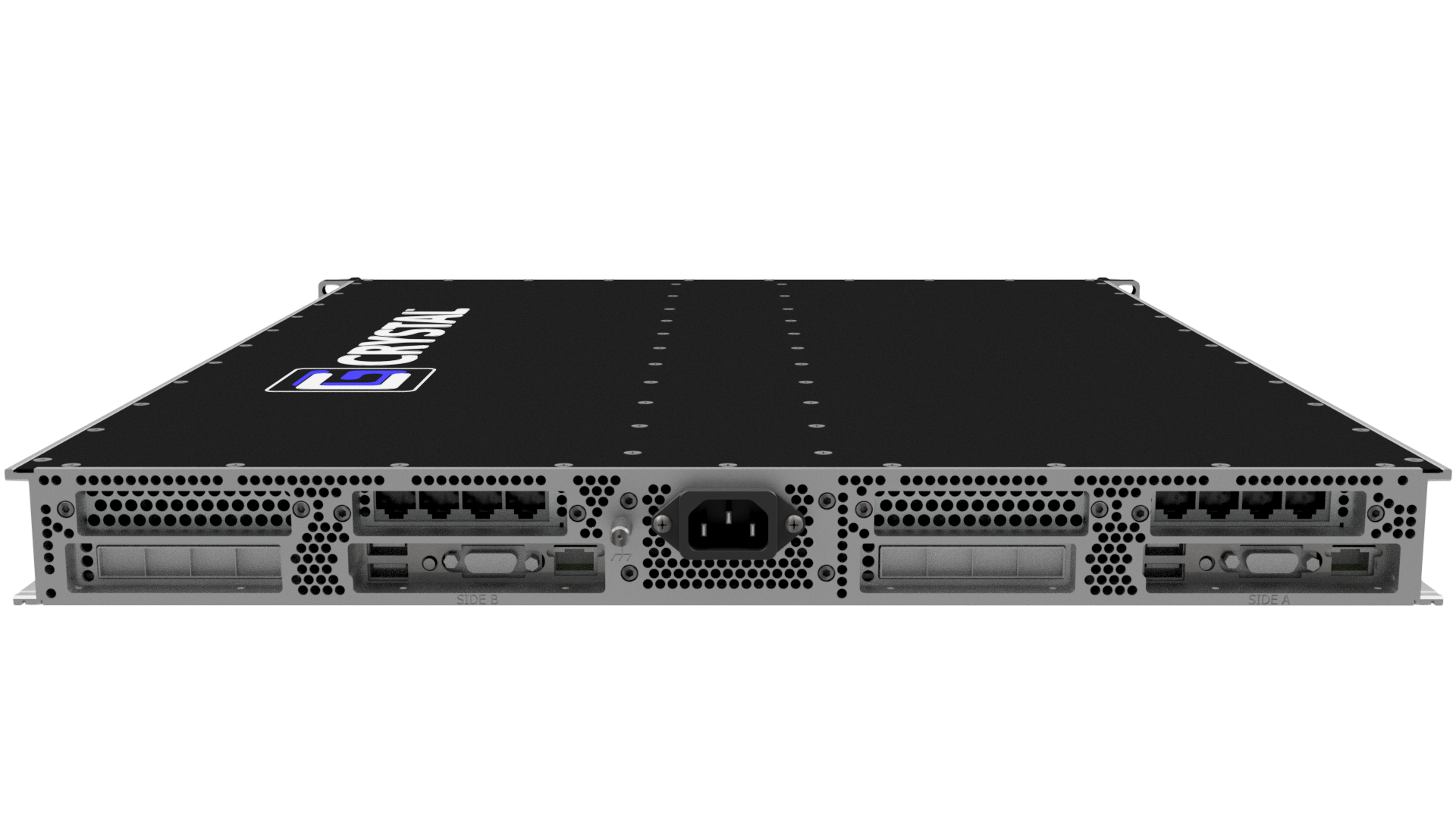

- Rugged 1U, 21″ deep rack-mounted dual node, rear I/O server
- Lightweight aluminum construction – 28 lbs.
- Shared 1500W power supply, operates from 110/220V 50/60Hz AC
- Dense SWaP capability with two dual-socket motherboards per chassis
- 2nd Gen Intel Xeon Scalable processors up to 110W each
- Four low-profile PCIe x16 slots, plus two SIOM modules with up to eight ports of network connectivity per chassis
- Four USB 3.0 and two VGA
- Full performance tested to +50°C ambient
Environmental Standards
| MIL-STD-810, Operational Temperature | -30°C to +55°C |
| MIL-STD-810, Storage, Method 501, Procedure I/II | -40°C to +85°C |
| MIL-STD-810, Humidity, Method 507, Procedure II | 240 hours with conformal coating |
| MIL-STD-810, Altitude, Method 500 | 12,500ft operation, 40,000ft transport |
| MIL-STD-810, Shock, Method 516, Procedures I/V | 6g, 11msec–functional shock; 20g, 11msec crash hazard shock |
| MIL-STD-810, Vibration, Method 514, Procedure I | 4.63 Grms, 5-2,000Hz, 60 min/axis, 3 axis |
| MIL-STD-167-1A, Vibration, Type 1 | |
Electromagnetic Compatibility Standards
| MIL-STD-461, RE102, CE102 compliant |
Mechanical
| Form Factor | 1U |
| Height | 1.75" (4.45 cm) |
| Width | 17.5" (44.45cm) |
| Depth | 21" (53.34cm) |
| Weight | 28 lbs (12.7 kg) |
CPU
| Intel® CPU architecture options from Intel embedded long-life roadmap | |
| Up to 16 cores per socket (2 sockets per node, 4 total) up to 110W each, 2nd Gen Intel Xeon Scalable processors |
Expansion Slots
| Two PCIe x16 HHHL low-profile cards per node (four total) | |
| One Supermicro SIOM card per node (two total) |
Memory
| 16GB to 4TB DDR4 ECC RDIMM/LRDIMM per node (2 nodes) |
Cooling
| Nine high-speed, high-volume fans |
Power Supply
| Single 1500W power supply shared by both nodes. Operates from 90-264V AC (50/60Hz). |
System Board
| 2x X11DPT-PS dual socket 2nd Gen Intel Xeon Scalable processors |
Software Capability
| Accepts Windows 10®, Windows Server, VMware®, or Linux® |
Storage
| Four 128Gb SATA DOM |
