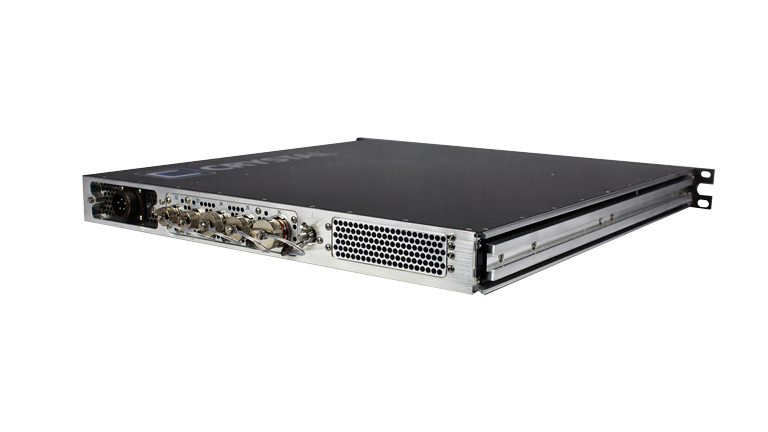

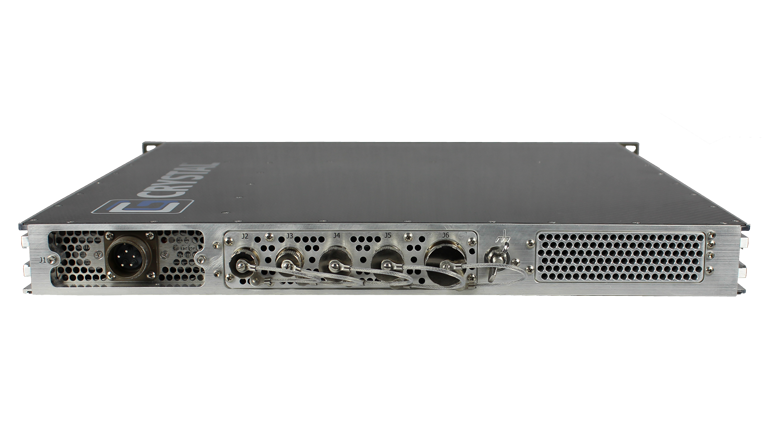

RS112PS18M Rugged 1U Carbon Fiber Server

Field tested, failsafe and long life performance in extreme conditions. As processing performance continues to improve, Crystal Group is dedicated to minimize the SWaP envelope of the RS112PS18M. High-end computing performance in a 1U chassis with a depth of 18” (45.7cm) fits most any rack space.

Features

RS112PS18 Rugged 1U Carbon Fiber Server

• Ultra light weight carbon fiber chassis – 10.5-15 lbs.
• Up to 32 GB of memory
• Easily mounted – Delrin glides or Jonathan® rails
• Rugged 1U, rack mounted 18” depth, available with optional Mil-Circ I/O
• Versatility with two (2) removable 3.5” drives or four (4) removable 2.5” drive bays
• Expandable with one (1) PCIe x 16 slot
• Leading edge Intel® LGA1151 Bridge CPU options

Specifications

Environmental Standards
MIL-STD-810, Operational Temperature, Method 501, Procedure I/II

-40°C to +55°C w/SSD, capable of -40°C to +71°C with SSDs

MIL-STD-810, Storage, Method 501, Procedure I/II

-40°C to +85°C

MIL-STD-810, Humidity, Method 507, Procedure II

240 hours with humidity kit

MIL-STD-810, Altitude, Method 500

12,500 ft.

MIL-STD-810, Vibration, Method 514, Category 13

5.5 Grms 10-2000Hz, 60 min/axis with solid state drivers + vibration kits

MIL-STD-810 Shock, Method 516, Procedure I

20G, 11 ms

MIL-S-901, Grade B
MIL-S-901, Grade A

With solid state drives & shock kits

Electromagnetic Compatibility Standards
Some standards may require an internal kit
AC, FCC compliant
AC, MIL-STD-461, RE102, CE102 compliant
DC, MIL-STD-461, RE102, CE102 compliant
RTCA DO-160 Section 21, Category M
14 CFR 25 - Airworthiness Standards
Flammability Airworthiness Test 14 CFR Part 25

Amendment 25-83 and 25-116, Appendix F, Part I, Para a(1), subparagraphs i, ii, and iv

Mechanical
Form Factor
1U
Height
1.75" (4.45cm)
Width
17.5" (44.45cm) [accepts Crystal Slides and Jonathan Rails] EIA-310 Rack Compliant
Depth
18" (45.72cm)
Weight:
10.5 - 15 lbs ( 4.76 - 6.8 kgs )
CPU
Intel® CPU architecture options from Intel embedded long-life roadmap
Ivy Bridge-M i3, i5, or i7 (see motherboard for complete listing of options.)
Expansion Slots
One (1) full-height, 1/2 length PCIe X16 slot
External Bays
Option 1

Two (2) removable SATA or SAS 2.5” or 3.5” HDD

Option 2

Four (4) removable SATA or SAS 2.5” HDDs

Option 3 (can be combined with HDD option)

One (1) CD/DVD/BD (R/W)

Memory
2 GB - 16 GB DDR3
Cooling

High speed, high volume, long life fans (6) CPU temperature controlled

Mounting
Option 1

Mounted on Delrin glides

Option 2

Jonathan rails

Power Supply
Option 1

460W 120/240VAC 50/60Hz w/PFC, 115VAC 400Hz

Option 2

425W 18-36VDC

System Board
Option 1

X9SPV-LN4F-3LE, FCBGA1023, i7-3555LE CPU, 2-16 GB ECC DDR3, 4-USB 2.0, 4-GBLAN, On-board SATA2 & SATA3

Option 2

X9SPV-F-3217UE, FCBGA1023, i3- 3217UE CPU, 2-16 GB ECC DDR3, 2-USB 2.0, 2-GBLAN, On-board SATA2 & SATA3

Option 3

X9SPV-M4, FCBGA1023, i7-3555LE CPU, 2-16 GB ECC DDR3, 2-USB 3.0, 2-USB 2.0, 4-GBLAN, On-board SATA2 & SATA3

Option 4

X9SPV-M4-3UE, FCBGA1023, i7-3517UE CPU, 2-16 GB ECC DDR3, 2-USB 3.0, 2-USB 2.0, 4-GBLAN, On-board SATA2 & SATA3

Option 5

X9SPV-LN4F-3QE, FCBGA1023, i7-3612QE CPU 2-16 GB ECC DDR3, 2-USB 2.0, 4-GBLAN, On-board SATA2 & SATA3

Option 6

X9SPV-F-3610ME, FCBGA1023, i5-3610ME CPU, 2-16 GB ECC DDR3, 2-USB 2.0, 2-GBLAN, On-board SATA2 & SATA3

Option 7

X9SPV-M4-3QE, FCBGA1023, i7-3612QE CPU, 2-16 GB ECC DDR3, 2-USB 3.0, 2-USB 2.0, 4-GBLAN, On-board SATA2 & SATA3

Software Compatibility
Accepts Windows 8®, Windows 7®, Windows Server 2008®, Windows Server 2012®, VMware® or Linux®
Export Compliance
ECCN: 5A992 | Classification is dependent on configuration and is subject to change. Please contact your Business Development Manager to receive the classification of your product.

Reports, Guides & Drawings

Download RS112PS18M- Outline Installation Drawing
