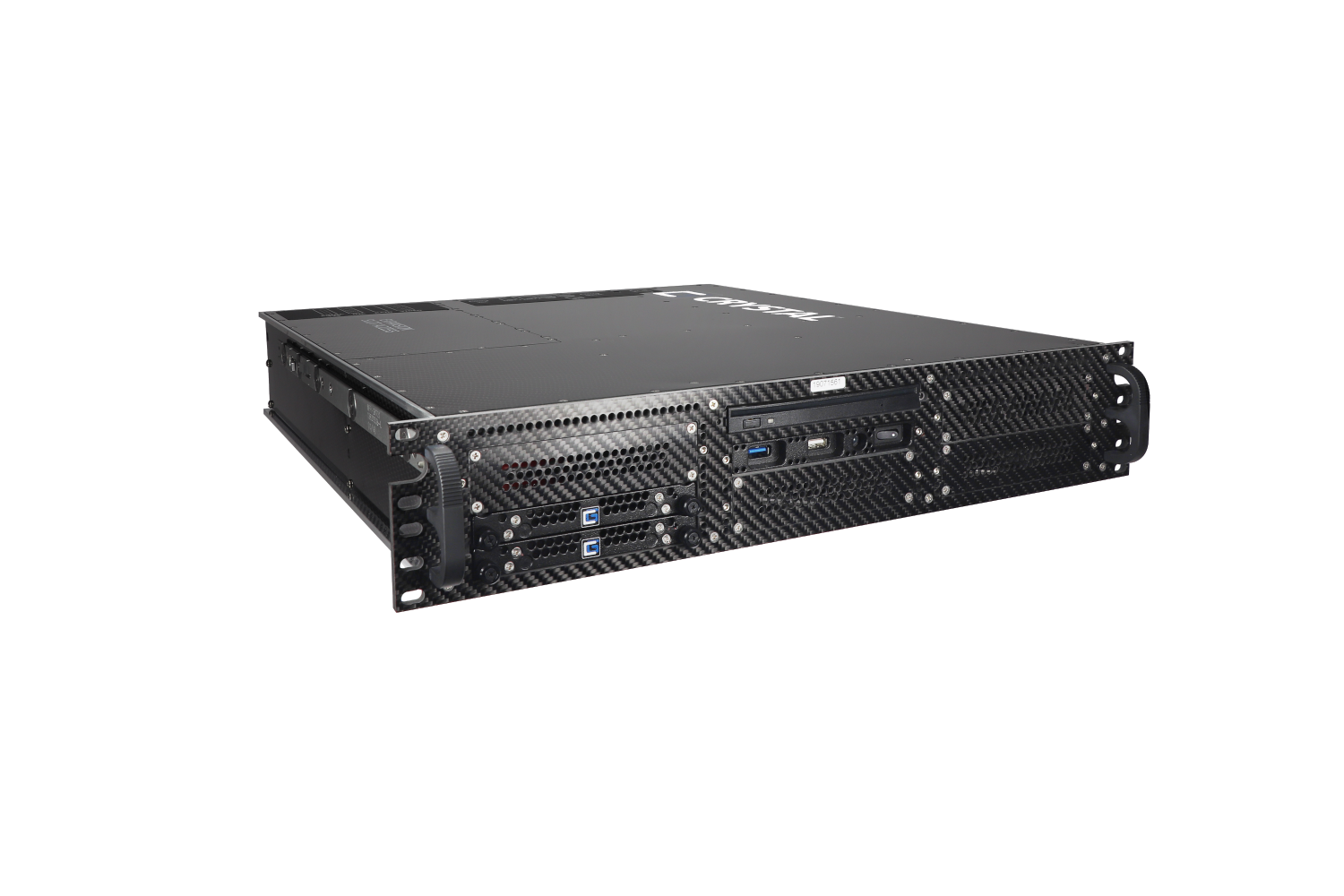

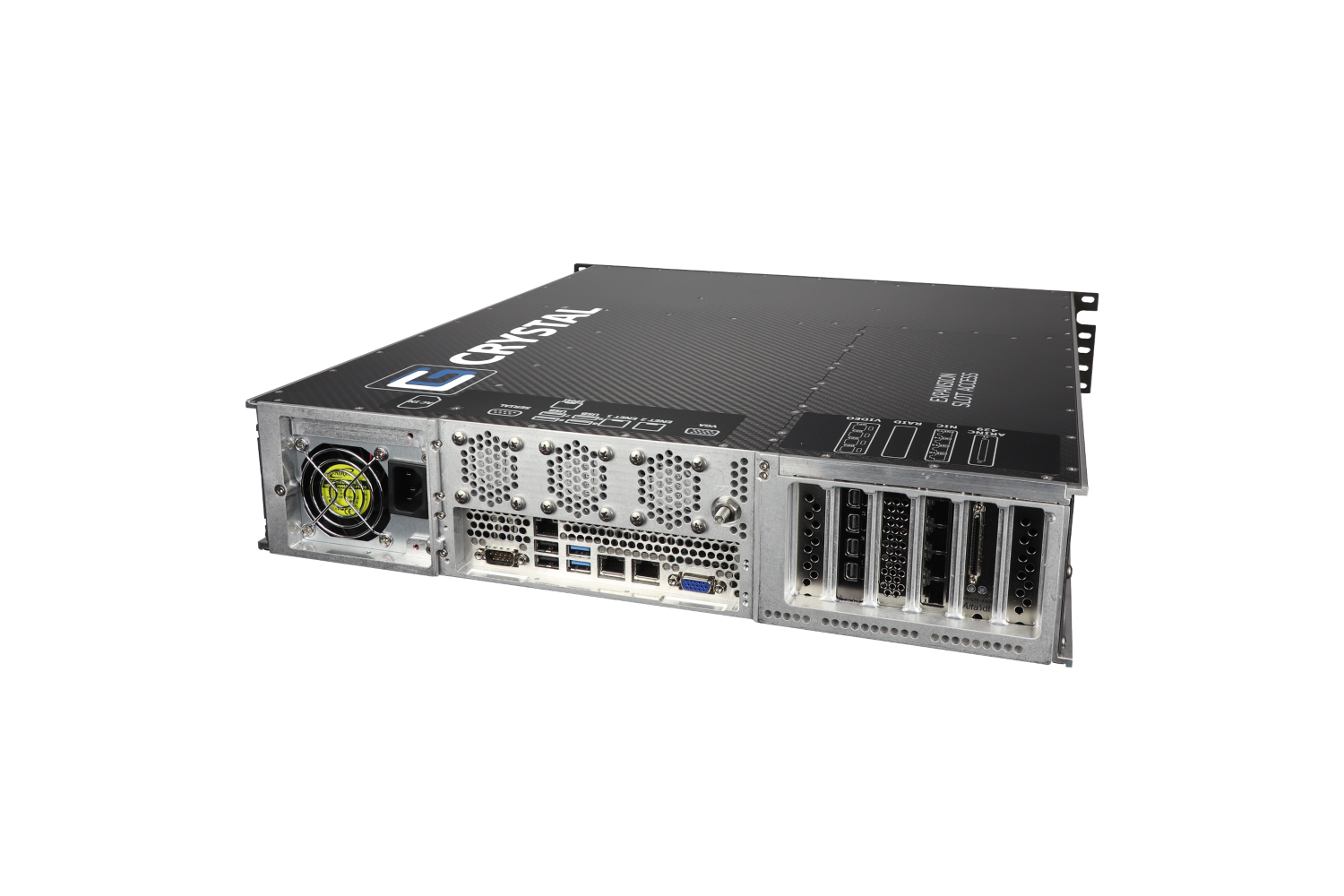

RS265P Rugged 2U Carbon Fiber Server

Compact, Powerful, and Ultra-Lightweight Rugged 2U
Weight relates to mission duration and fuel costs. Whether discussing UAVs, transit case mobility, or airborne workstations, weight has a significant impact on operational performance. Smaller, lighter, lower power is always better when it comes to high-end mobile computing. Crystal Group gives your mission these capabilities with a composite carbon fiber construction server boasting a mere 60% of the weight of a 20” deep rugged chassis.

Features

RS265P Rugged 2U Carbon Fiber Server

  • Rugged 2U, rack mounted 20″ depth
  • Ultra light weight carbon fiber construction – 18-27 lbs.
  • Leading edge Intel® Sandy Bridge, Ivy Bridge, or Haswell CPU options
  • Versatility with up to ten (10) removable 2.5″ SSD bays or five (5) removable 3.5″ HDD bays
  • Expandable with six (6) low profile 3/4 length slots
  • Up to 512 GB of memory
  • Intel® Technology Platinum Provider 2016

Specifications

Environmental Standards
MIL-STD-810, Operational Temperature, Method 501, Procedure I/II

-15C to +55°C, capable of -40°C to +71°C with select processors

MIL-STD-810, Storage, Method 501, Procedure I/II

-55°C to +85°C

MIL-STD-810, Humidity, Method 507, Procedure II

240 hours with humidity kit

MIL-STD-810, Altitude, Method 500

12,500 ft. operation, 40,000 ft transport

MIL-STD-810, Vibration, Method 514, Procedure 13

4.43 Grms

MIL-STD-810, Crash Hazard Shock for Flight Vehicle Equipment, Method 516, Procedure V

40G 20 ms

MIL-S-901, Grade A, Class 2, Type B
MIL-S-901, Grade A, Class 2, Type A

With solid state drives & vibration kits

Electromagnetic Compatibility Standards
Some standards may require an internal kit
MIL-STD-461, EMC, CE102 (conducted) & RE102 (radiated) emissions, CS101, RS103, CS114, CS115, and CS116, RTCA DO-160 Sections 20 and 21
AC, FCC compliant
AC, MIL-STD-461, RE102, CE102 compliant
DC, MIL-STD-461, RE102, CE102 compliant
RTCA DO-160 Section 21, Category M
14 CFR 25 - Airworthiness Standards
Flammability Airworthiness Test 14 CFR Part 25

Amendment 25-83 and 25-116, Appendix F, Part I, Para a(1), subparagraphs i, ii, and iv

Mechanical
Form Factor
2U
Height
3.5" (8.89cm)
Width
17.5" (44.45cm) [accepts Crystal Slides and Jonathan Rails] EIA-310 Rack Compliant
Depth
20" (50.8cm)
Weight:
18 - 27 lbs ( 8.16 - 12.25 kgs )
CPU
Intel® CPU architecture options from Intel embedded long-life roadmap
Option 1

Sandy Bridge or Ivy Bridge LGA 2011, X9DRL-IF

Option 2

Sandy Bridge or Ivy Bridge LGA 1155, X9SAE-V

Option 3

Haswell LGA 2011, X10SRL-F or X10DRL-I

Dual, Quad, Hexa, Octa, Deca, or Dodeca Core options (dependent on CPU)

Expansion Slots
Six (6) low profile, 3/4 length PCIe or PCI slot
External Bays
Option 1

Ten (10) removable SATA or SAS 2.5″ SSD

Option 2

Five (5) removable SATA or SAS 2.5″ or  3.5″ HDDs

Option 3 (can be combined with HDD option)

One (1) CD/DVD/BD (R/W)

Memory
- 512 GB
Cooling

High speed, high volume fans (4) CPU temperature controlled.

Mounting
Option 1

Ultra light mounts on Delrin glides

Option 2

Jonathan rails, 128QD

Power Supply
Option 1

600W 120/240VAC w/PFC, 115VAC 400Hz

Option 2

585W 18-36VDC

System Board
Option 1

X9DRL-IF, LGA2011 Xeon®, ATX, 2LAN1000, VGA, 1 PCI 3.3V, 4 PCI-E X8, 1 PCI-E X1, IPMI, IPKVM, SATARAIDX8, SATA3X2

Option 2

X9SAE-V, LGA1155, Xeon® & i3/5/7, ATX, 2LAN1000, VGA, 2XHDMI, AUDIO, 1 PCI 5V, 2 PCI-E X1, 1 PCI-E X8, 2 PCI-E X16, SATAX4, SATA3X2

Option 3

X10SRL-F, LGA2011 R3 Xeon®, ATX, 2LAN1000, VGA, 2 PCI-E X16, 5 PCI-E X8, IPMI, IPKVM, SATA3X10

Option 4

X10DRL-I, Dual LGA2011 R3 XEON, ATX, 2LAN1000, VGA, 5 PCI-E X8, 1 PCI-E X16, IPMI, IPKVM, SATA3X10

Software Compatibility
Accepts Windows 8®, Windows 7®, Windows Server 2008®, Windows Server 2012®, VMware® or Linux®
Kit Options
Kit Option 1 - Shock/Vibe

Power supply mods, card stabilization (as required), and DIMM retention, SSD only

Kit Option 2 - EMI

Input filtering and additional shielding/grounding

Kit Option 3 - Humidity

Conformal coatings and sealing of unused contacts and connectors

Export Compliance
ECCN: 5A992 | Classification is dependent on configuration and is subject to change. Please contact your Business Development Manager to receive the classification of your product.

Reports, Guides & Drawings

RS265P 2U Carbon Fiber Server - Outline Installation Drawing
TST-00091 RS265P August 2014 Environmental Test Report
TST-00183 RS265P August 2014 Thermal In-House Test Report Summary
RS265P 2U Carbon Fiber Server - X10 Outline Installation Drawing
