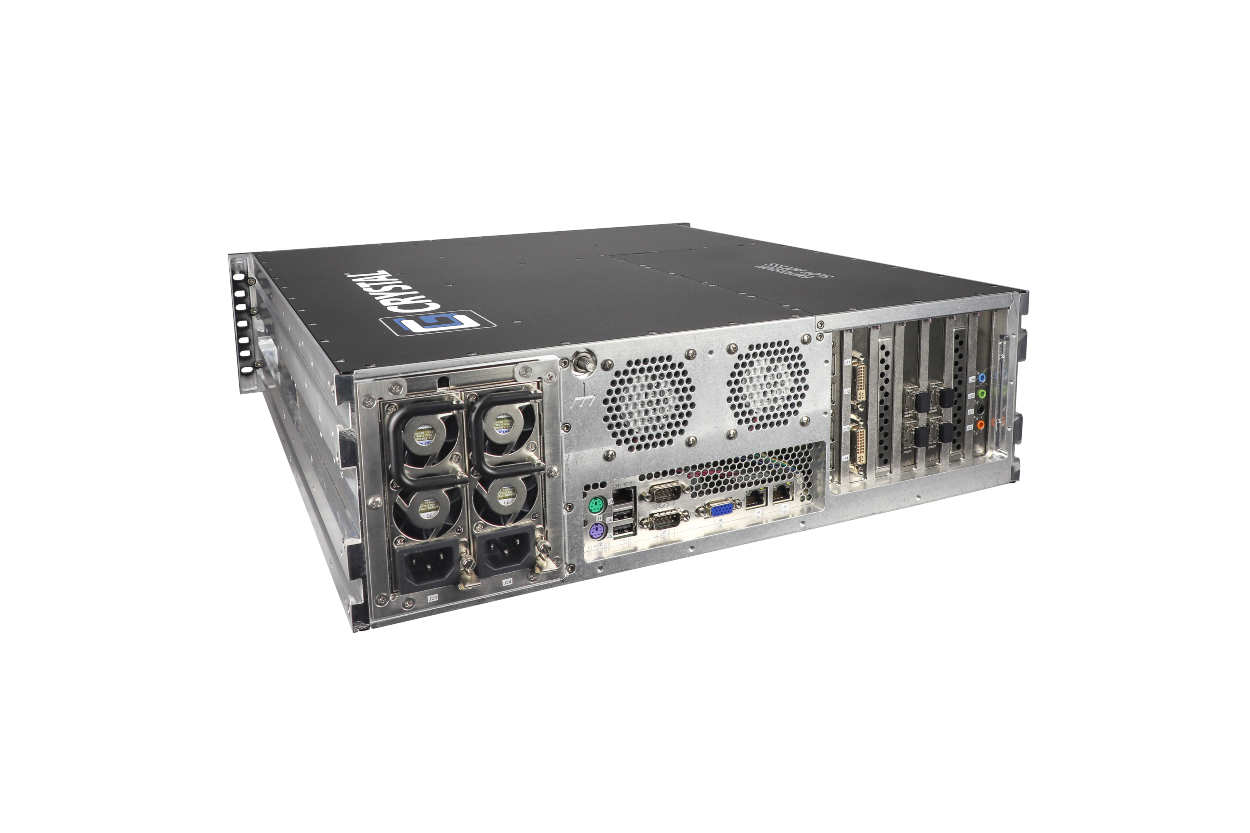

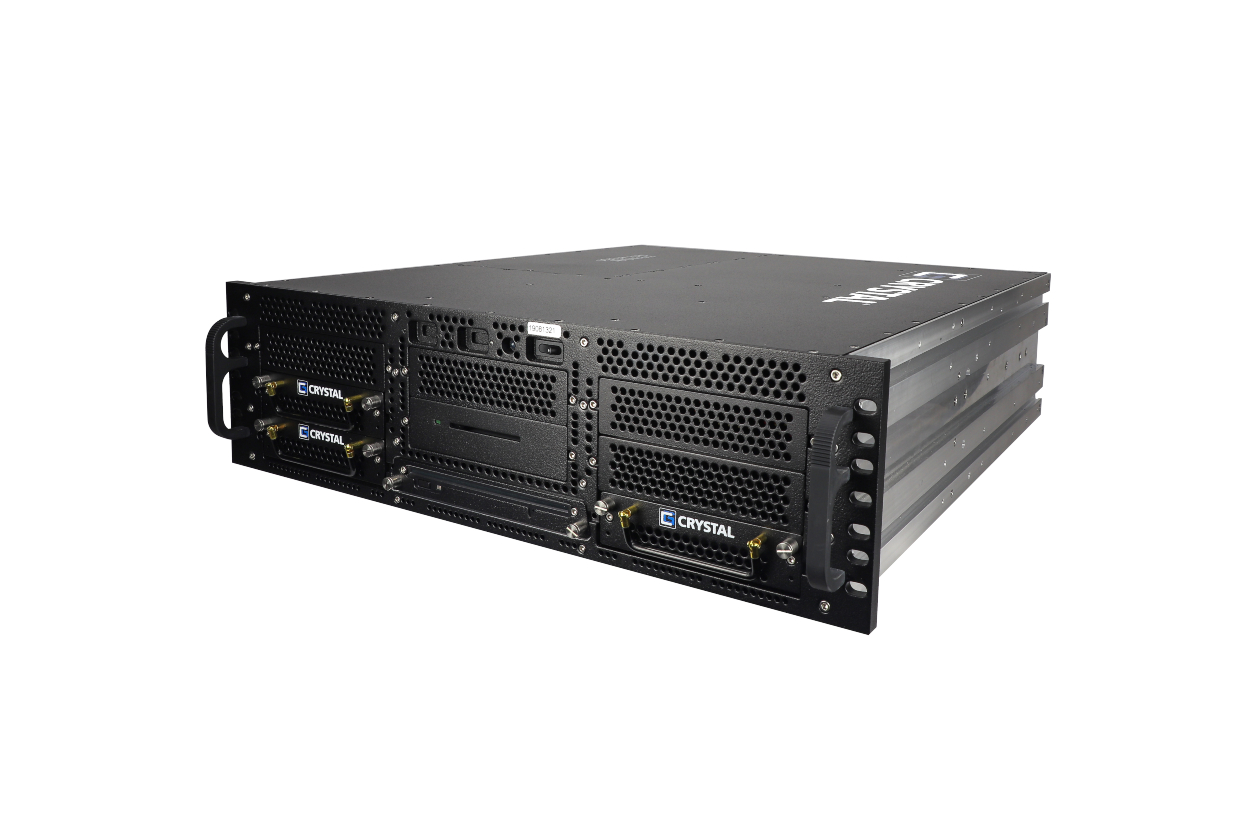

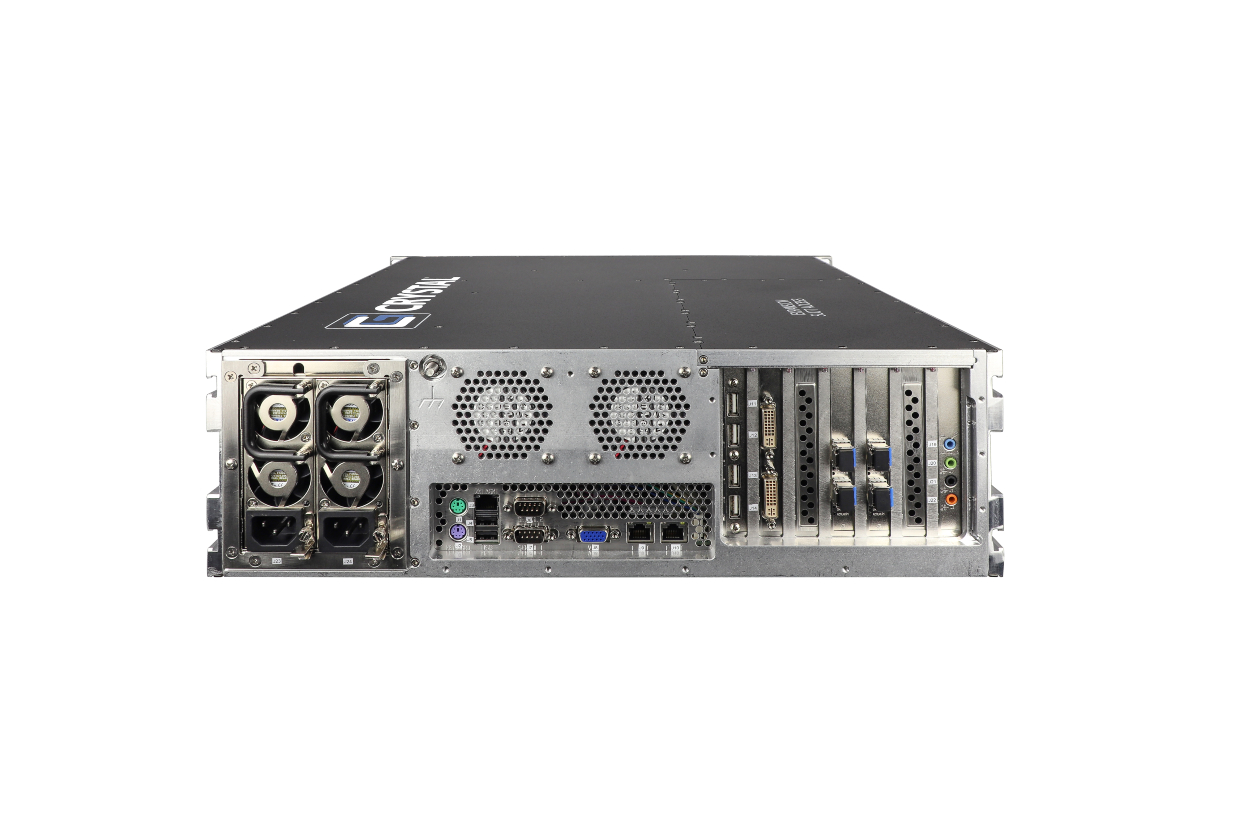

RS378 Rugged 3U Server

Field tested, failsafe and long life performance in extreme conditions. As processing performance continues to improve, Crystal Group is dedicated to minimize the SWaP envelope of the RS378. High-end computing performance in a 3U chassis with a depth of 20” (50.8 cm) fits most any rack space.

Features

RS378 Rugged 3U Server

• Light weight aluminum construction – 40-46 lbs.
• Easily mounted – Delrin glides, fixed mount, or Jonathan® rails
• Up to 512 GB of memory
• Rugged 3U, rack mounted 20” depth
• Versatility with eight (8) removable 3.5” HDD or 2.5” SATA or SAS bays
• Expandable with seven (7) full height slots
• Leading edge Intel® Sandy Bridge, Ivy Bridge, Haswell or Broadwell CPU options

Specifications

Environmental Standards
MIL-STD-810, Operational Temperature, Method 501/502 Procedure I/II

-15°C to +55°C, capable of -40°C to +71°C with select processors

MIL-STD-810, Storage, Method 501, Procedure I/II

-55°C to 85°C

MIL-STD-810, Humidity, Method 507, Procedure II

240 hours with humidity kit

MIL-STD-810, Altitude, Method 500

12,500ft operation, 40,000ft transport

MIL-STD-810, Vibration, Method 514, Procedure I

4.6 GRMS, 5-2,000Hz, 60 min/axis with solid state drives and vibration kits

MIL-S-901, Grade B
MIL-S-901, Grade A

With solid state drives + shock kits

Electromagnetic Compatibility Standards
Some standards may require an internal kit
AC, FCC compliant
AC, MIL-STD-461, RE102, CE102 compliant
DC, MIL-STD-461, RE102, CE102 compliant
RTCA DO-160 Section 21, Category M
Mechanical
Form Factor
3U
Height
5.25" (13.34cm)
Width
17.5" (44.45cm)
Depth
20" (50.8cm) [accepts Crystal/Jonathan rails] EIA-310 Rack Compliant
Weight:
40 - 46 lbs ( 18.14 - 20.87 kgs ) (excludes vibe kit mods)
CPU
Intel® CPU architecture options from Intel embedded long-life roadmap
Option 1

Sandy Bridge or Ivy Bridge LGA1155, X9SAE-V

Option 2

Haswell or Broadwell LGA2011, X10SRL-F or X10DRL-I

Dual, Quad, Hexa, Octa, Deca, or Dodeca Core options (dependent on motherboard)

Expansion Slots
Seven (7) full-height slot; combination is configuration dependent
External Bays
Option 1

Eight (8) removable SATA or SAS 2.5” or 3.5” HDD

Option 2

Sixteen (16) 2.5” SATA or SAS HDDs in two (2) Drivepacks & two (2) 2.5” or 3.5” HDD

Option 3 (can be combined with HDD option)

One (1) CD/DVD/BD (R/W)

Memory
8 GB - 512 GB DDR3 or DDR4 (motherboard dependent)
Cooling

High Speed, High Volume Fans (5) CPU temperature controlled

Mounting
Option 1

Mounted on Delrin glides

Option 2

Fixed mount, front and rear

Option 3

Jonathan rails

Power Supply
Option 1

600W 120/240VAC 50/60Hz w/PFC, 115VAC 400Hz

Option 2

1200 120/240VAC 1+1 w/PFC

Option 3

1005W 18-36VDC

System Board
Option 1

X9SAE-V, Single LGA1155, Xeon®, i3/5/7, ATX, 2LAN1000, VGA, 2XHDMI, AUDIO, 1 PCI, 2 PCI-E X1, 1 PCI-E X4, 1 PCI-E X8, 2 PCI-E X16, SATAX4, SATA3X2

Option 2

X10DRL-I, Dual LGA2011 R3 Xeon®, ATX, 2LAN1000, VGA, 5 PCI-E X8, 1 PCI-E X16, IPMI, IPKVM, SATA3X10

Option 3

X10SRL-F, Single LGA2011 R3 Xeon®, ATX, 2LAN1000, VGA, 2 PCI-E X16, 5 PCI-E X8, IPMI, IPKVM, SATA3X10

Software Compatibility
Accepts Windows 8®, Windows 7®, Windows Server 2008®, Windows Server 2012®, VMware® or Linux®
Export Compliance
ECCN: 5A992 | Classification is dependent on configuration and is subject to change. Please contact your Business Development Manager to receive the classification of your product.

Reports, Guides & Drawings

RS378 Rugged 3U Server - Outline Installation Drawing
RS378 X8 Hardware Guide
RS378 X9 Hardware Guide
TST-00124 RS378 June 2010 Electromagnetic Compatibility Test Report
RS378 June 2011 Electromagnetic Compatibility Test Report
RS378 July 2010 Environmental & Dynamics Test Report
RS378 Sept 2011 Environmental & Dynamics Test Report
RS378 3U Rugged Server with Jonathan Rails- Outline Installation Drawing
RS378 3U Rugged Server-X10 Outline Installation Drawing
