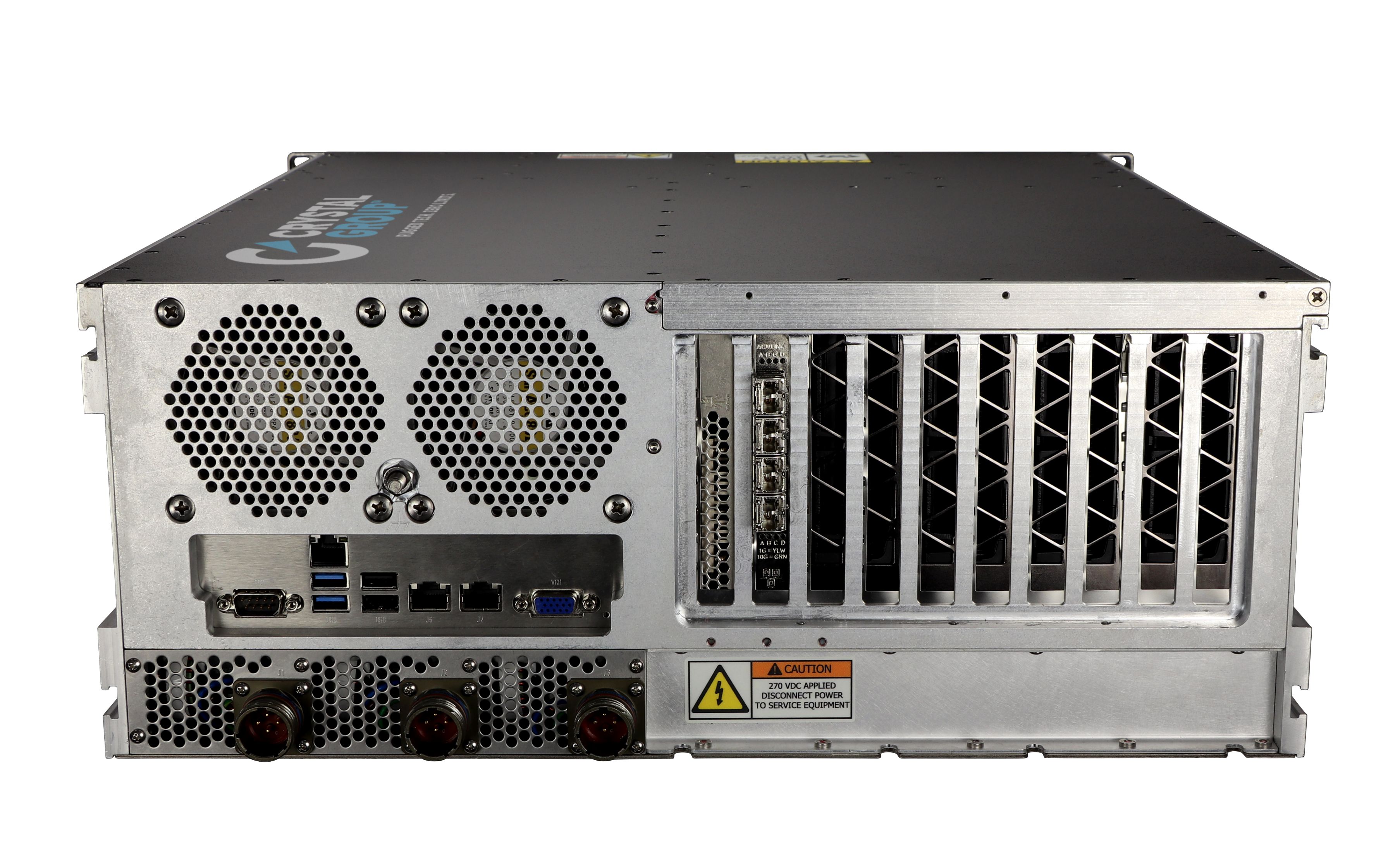

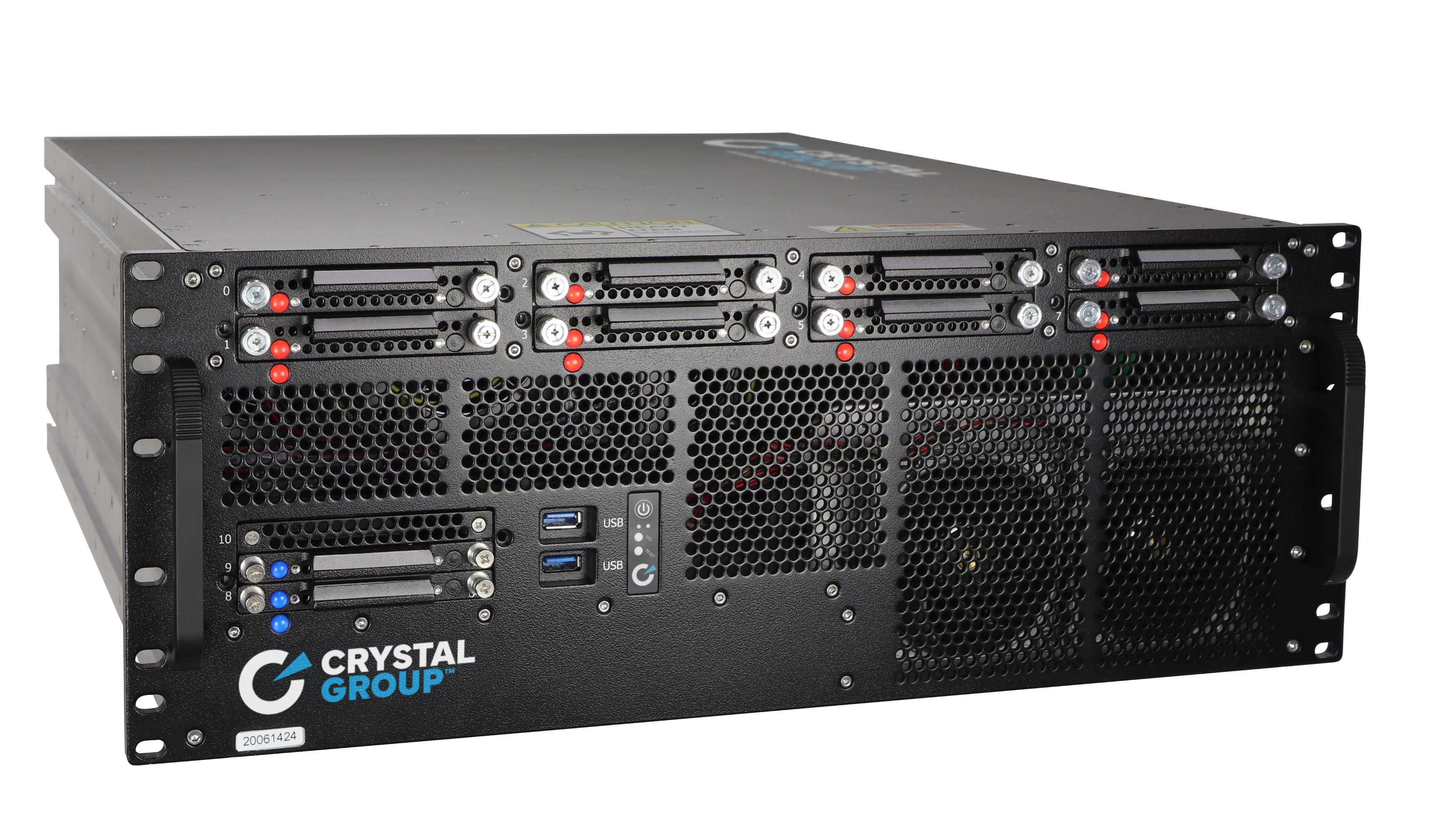

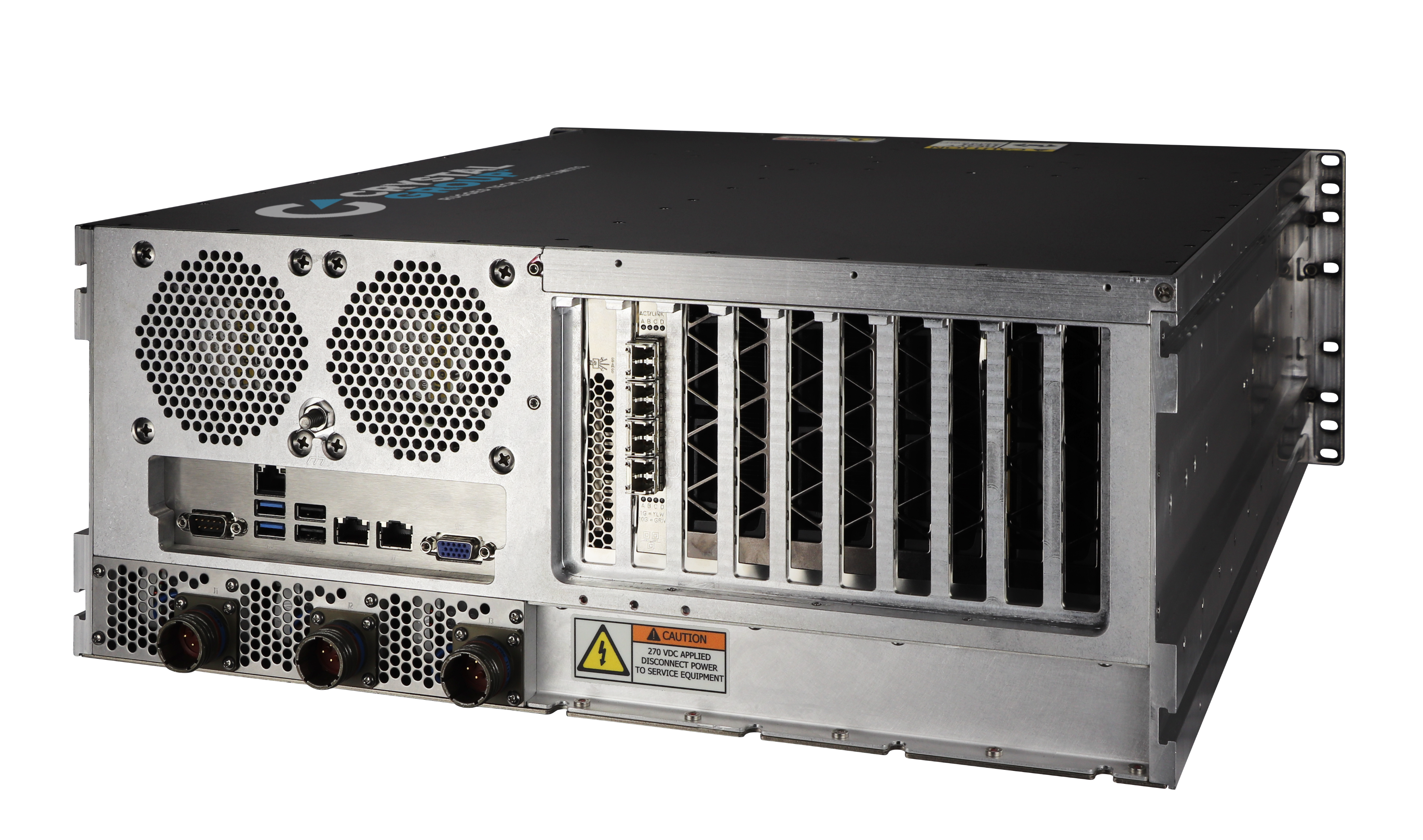

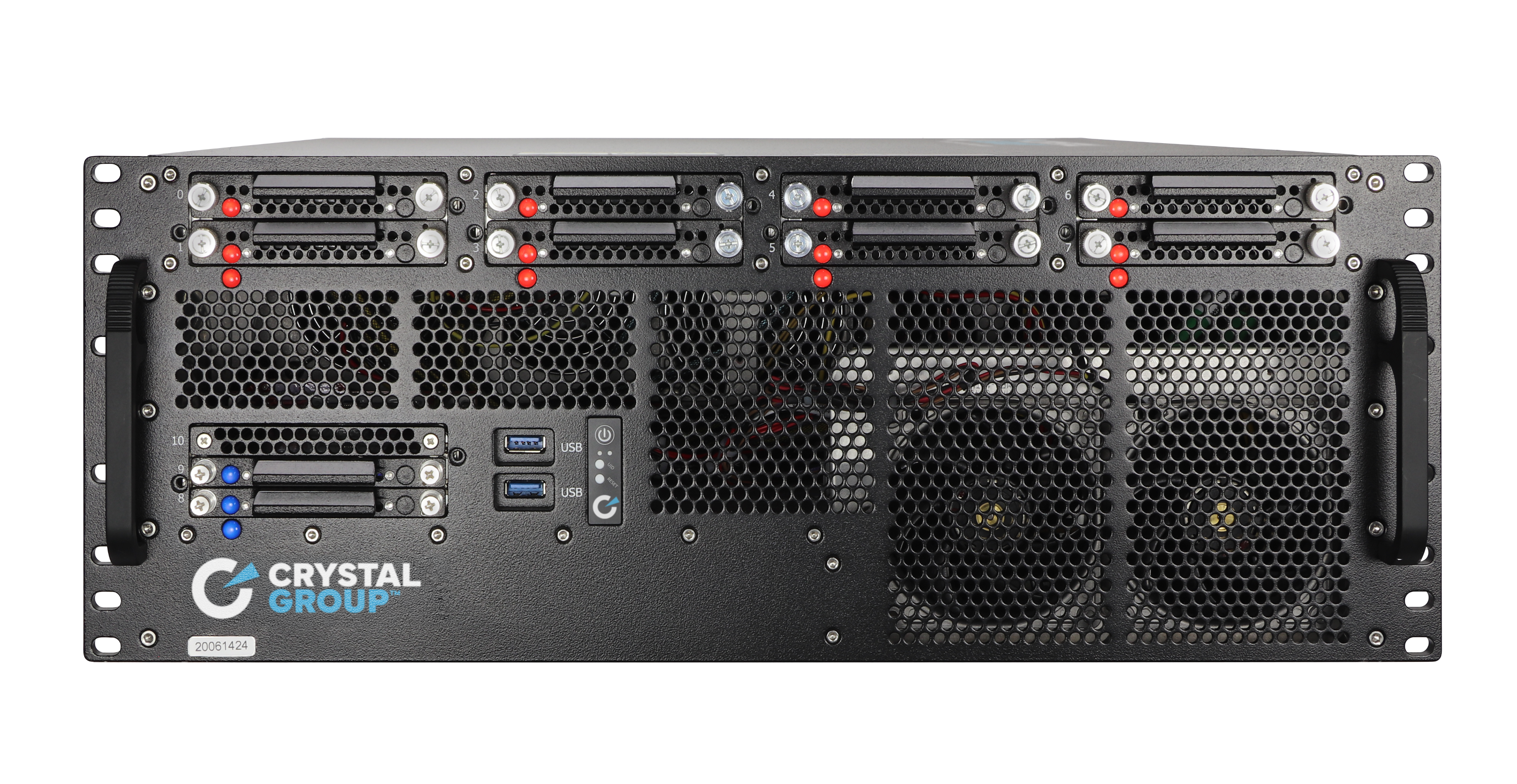

RS4105L22 4U Rugged Server

Field tested, fail-safe and long-life performance in extreme conditions. As processing performance continues to improve, Crystal Group is dedicated to minimize the SWaP envelope of the RS4105L22. High-end computing performance in a 4U chassis with a depth of 22″ (55.9 cm) fits most any rack space.

Features

  • Aluminum construction — 55-66 lbs. (26.3-29.9kg)
  • Easily mounted on Crystal Glides or Jonathan® rails
  • Up to 3TB of DDR4 memory
  • Rugged 4U, rack mounted 22″ depth
  • 3000W N+1 AC power supply
  • Versatility with four modular SSD bays for up to 15 SSDs
  • Designed for four high powered GPGPUs
  • Expandable with ten PCIe slots
  • 2nd Generation Intel® Xeon® Scalable processors

Specifications

Environmental Standards
Designed to meet standard
MIL-STD-810, Operational Temperature, Method 501, Procedure I/II

-30°C to +50°C

MIL-STD-810, Storage, Method 501, Procedure I/II

-40°C to +85°C

MIL-STD-810, Humidity, Method 507, Procedure II

240 hours with conformal coat

MIL-STD-810, Altitude, Method 500

12,500ft operation, 40,000ft transport

MIL-STD-810, Vibration, Method 514, Procedure I

2 GRMS, 5-2,000Hz, 60 min/axis

MIL-S-901, Grade B
Electromagnetic Compatibility Standards
Designed to meet standard
AC, FCC compliant
AC, MIL-STD-461, RE102, CE102 compliant
DC, MIL-STD-461, RE102, CE102 compliant
Mechanical
Form Factor
4U
Height
7" (17.78cm)
Width
17.5" (44.45cm) EIA-310 Rack Comliant
Depth
22" (55.88cm)
Weight:
55 - 66 lbs ( 24.95 - 29.94 kgs )
CPU
Intel® CPU architecture options from Intel embedded long-life roadmap; Dual Socket 2nd Generation Intel® Xeon® Scalable options up to 28 cores each
Expansion Slots
Ten PCIe expansion Slots (5 PCIe X16, 5 PCIe X8)
External Bays
Five Crystal FORCE expansion bays, up to 15x SSD or other FORCE accessory modules
Memory
16 GB DDR4 RDIMM/LRDIMM
Cooling

Ten high speed, high volume fans, CPU temperature controlled

Mounting
Crystal Glides or Jonathan rails
Power Supply
3000W 120/240VAC 50/60Hz and 180-350VDC, N+1 redundant
System Board
Supermicro X11DPX-T
Software Compatibility
Accepts Windows 10®, VMware® or Linux®
Export Compliance
ECCN: 5A992.a | Classification is dependent on configuration and is subject to change. Please contact your program manager to receive the classification for your product.
