Crystal Group FORCE™ Rugged Servers

Arm yourself with FORCE: Fully Optimized Rugged Computer Equipment from Crystal Group.

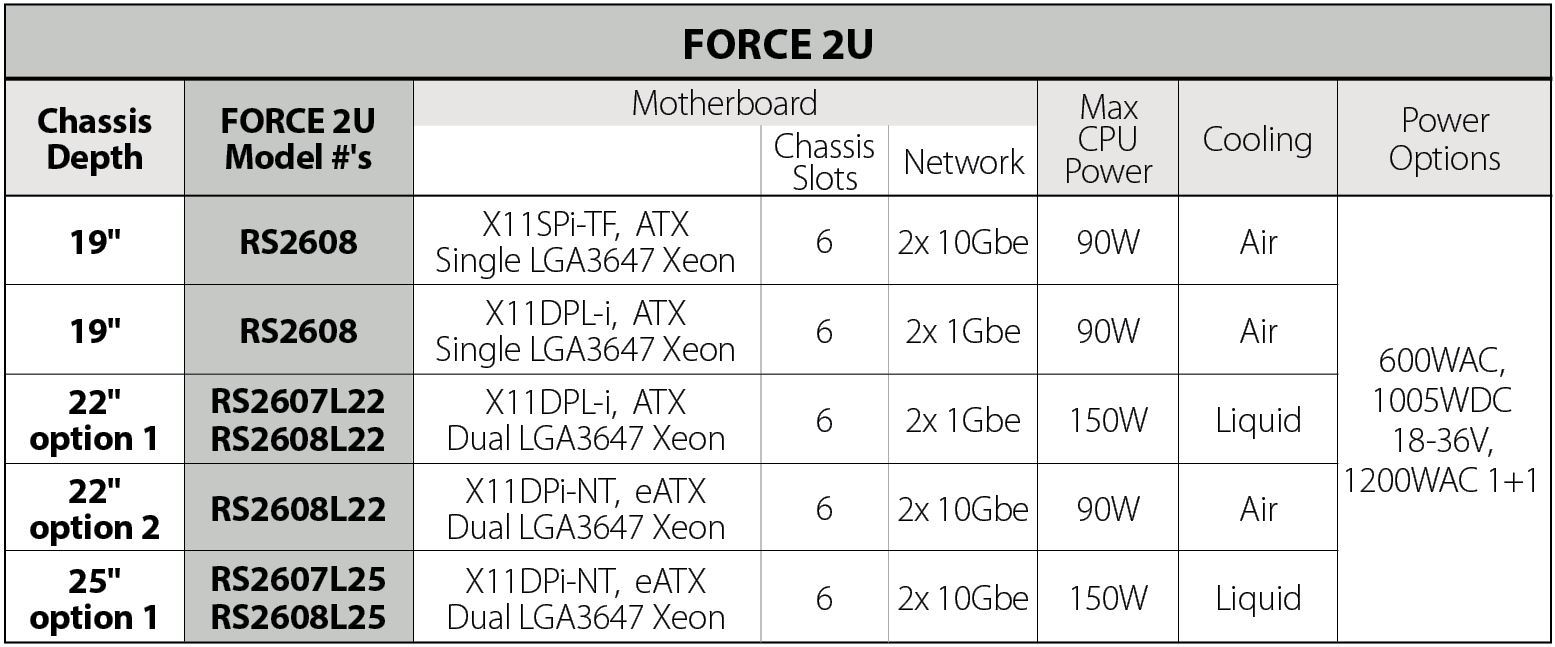

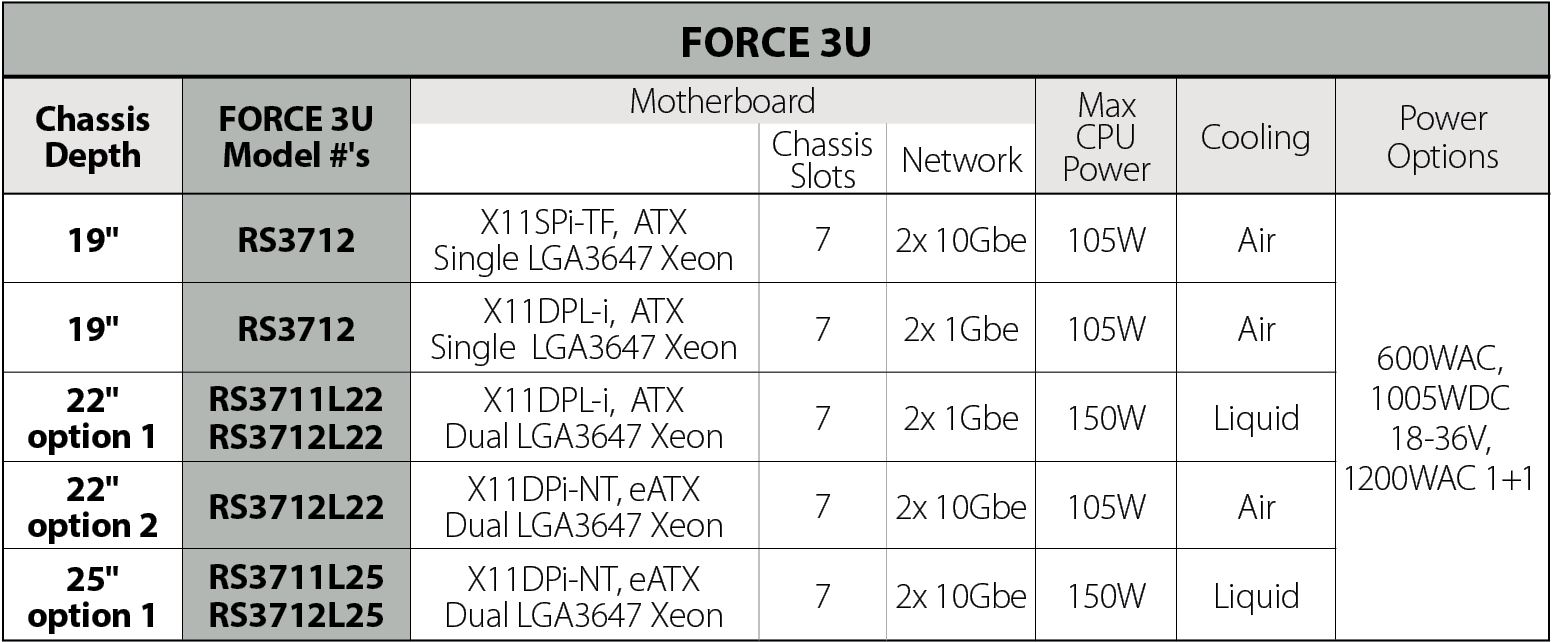

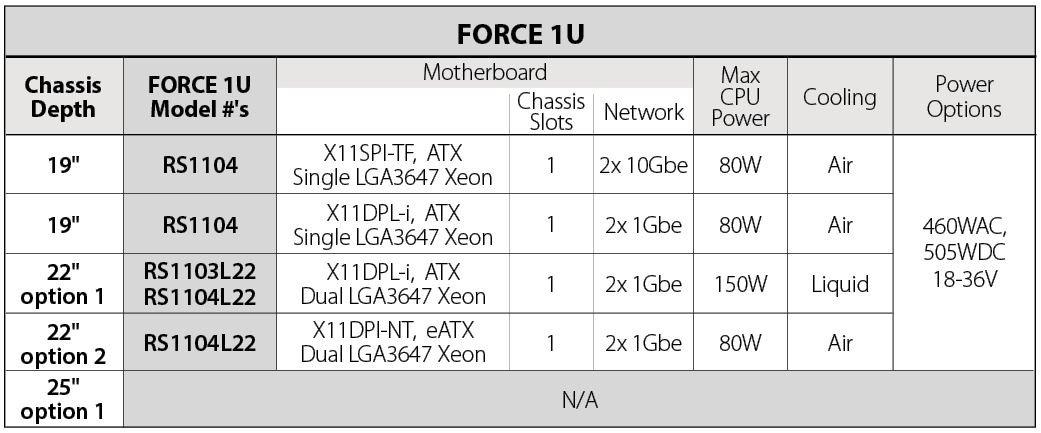

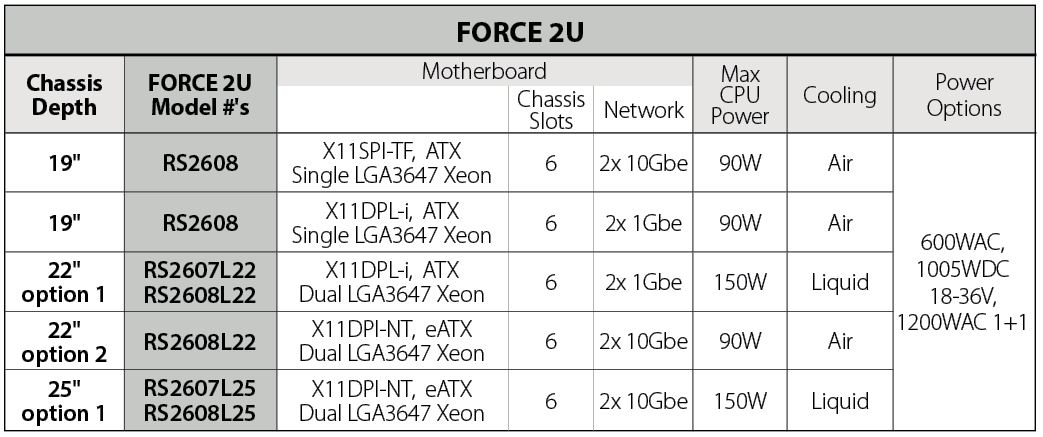

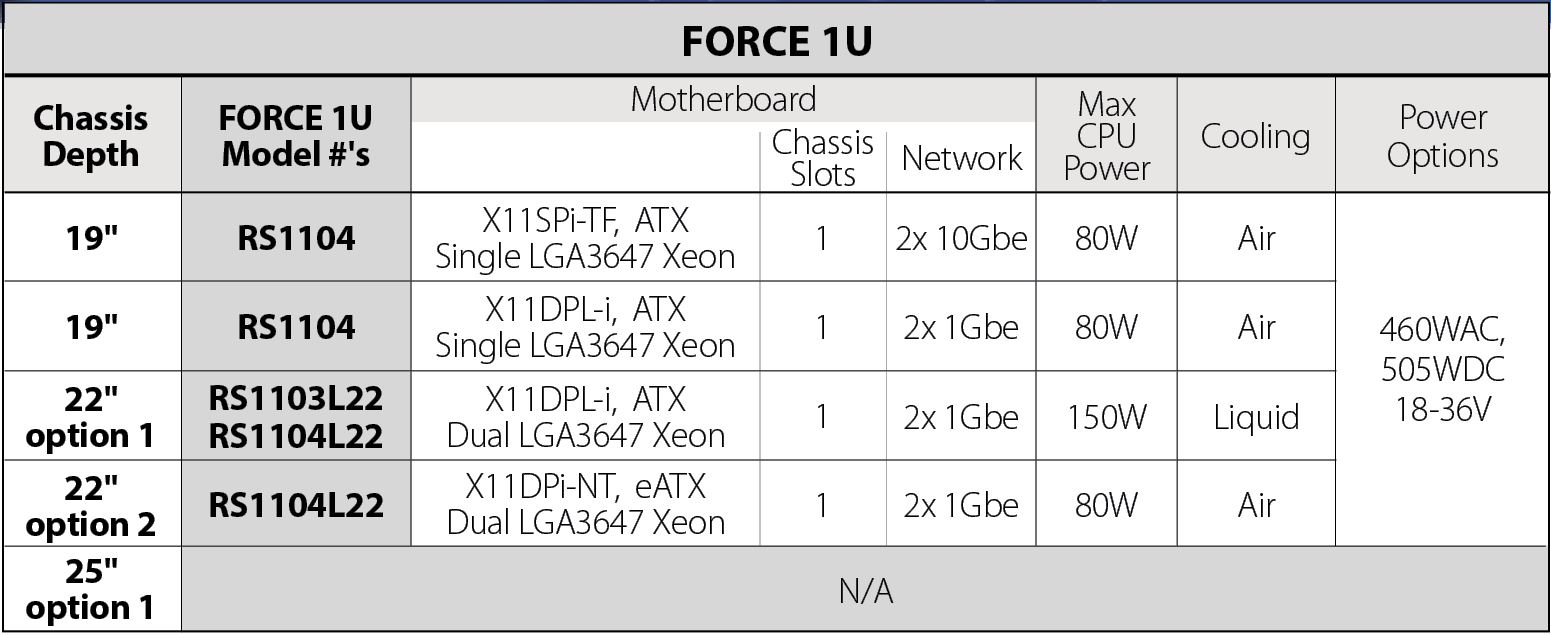

Engineered with the latest advances in ruggedization, Crystal Group 1U, 2U, and 3U Rugged FORCE Servers with Intel® Xeon® Skylake processors bring unprecedented power and flexibility to the battlefield. Now with more standard rugged features to protect against heat, vibration, shock and humidity. Crystal Group FORCE RS1104L22 can dissipate 280 watts of CPU power with state of the art liquid cooling. FORCE is a high-bandwidth, low-latency, SWaP-C optimized high-performance computing (HPC) system. Tackle your toughest workloads with Crystal Group FORCE™ Rugged Servers.

Standard Features

  • EMI
  • Chassis intrusion switch
  • Humidity protection
  • MIL-STD-810 Shock and Vibe
  • 7, 9.5, 15mm drive capability
  • Backlit power/reset/UID switch
  • High-speed, high-volume fans for longer operational life
  • Lightweight billet aluminum chassis
  • Up to 1TB DDR4 EEC memory
  • 8-24 core, Intel Xeon Skylake processors (not all CPUs available in all chassis)

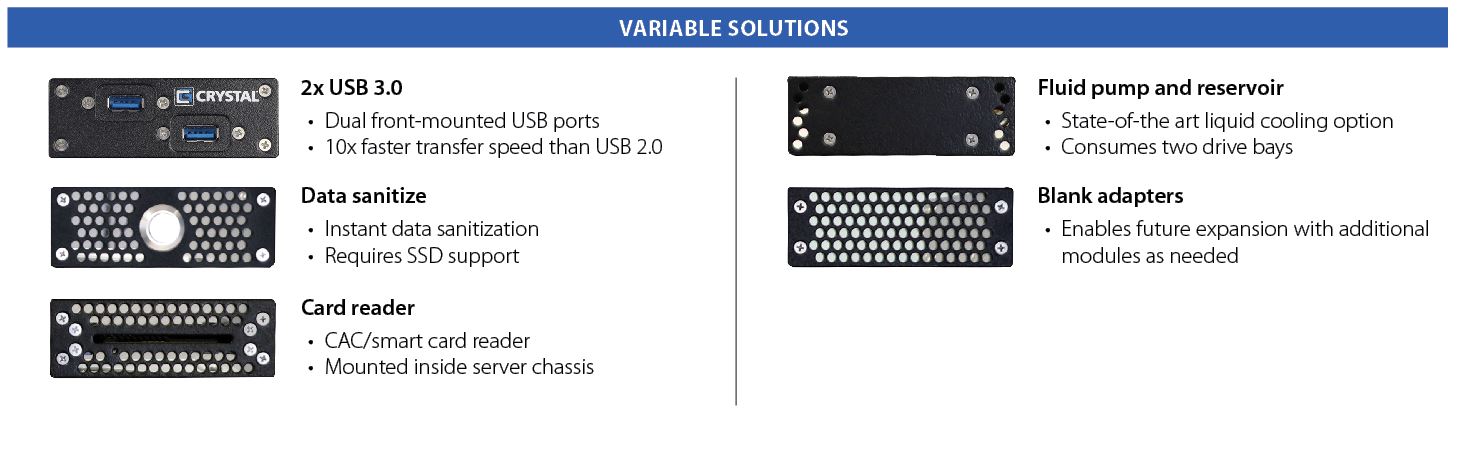

Module Options

Front Module Options

  • 2-Drive carriers, 4 per rack unit of height
  • 3-Drive carriers, 4 per rack unit of height
  • CMOS battery tray
  • DVD + 2xUSB ports + CMOS battery tray
  • Dust filter
  • Liquid cooling
  • Breaker
  • Serial ports
  • Sound card
  • Adapter blanks
  • 4-Key LCD panel
  • Card reader

Rear Module Options

  • Mil-Circ rear doghouse

Certification reports for select products are available on Crystalrugged.com. Crystal Group designs all servers to meet or exceed the specifications listed herein. Due to the sheer number of models and combinations of components (memory, CPU, peripheral cards, hard drives), it is not practical to test every combination of servers offered. Please ask your Crystal Business Development Manager for data on qualification testing for configurations similar to the desired configuration for your application.

Not Finding What You're Looking For?

We can customize a solution to meet your needs. Contact our knowledgeable sales staff for more information.
